Power Mirror Switch Test/Replacement

Remove the driver's door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 13P connector from the power mirror switch.

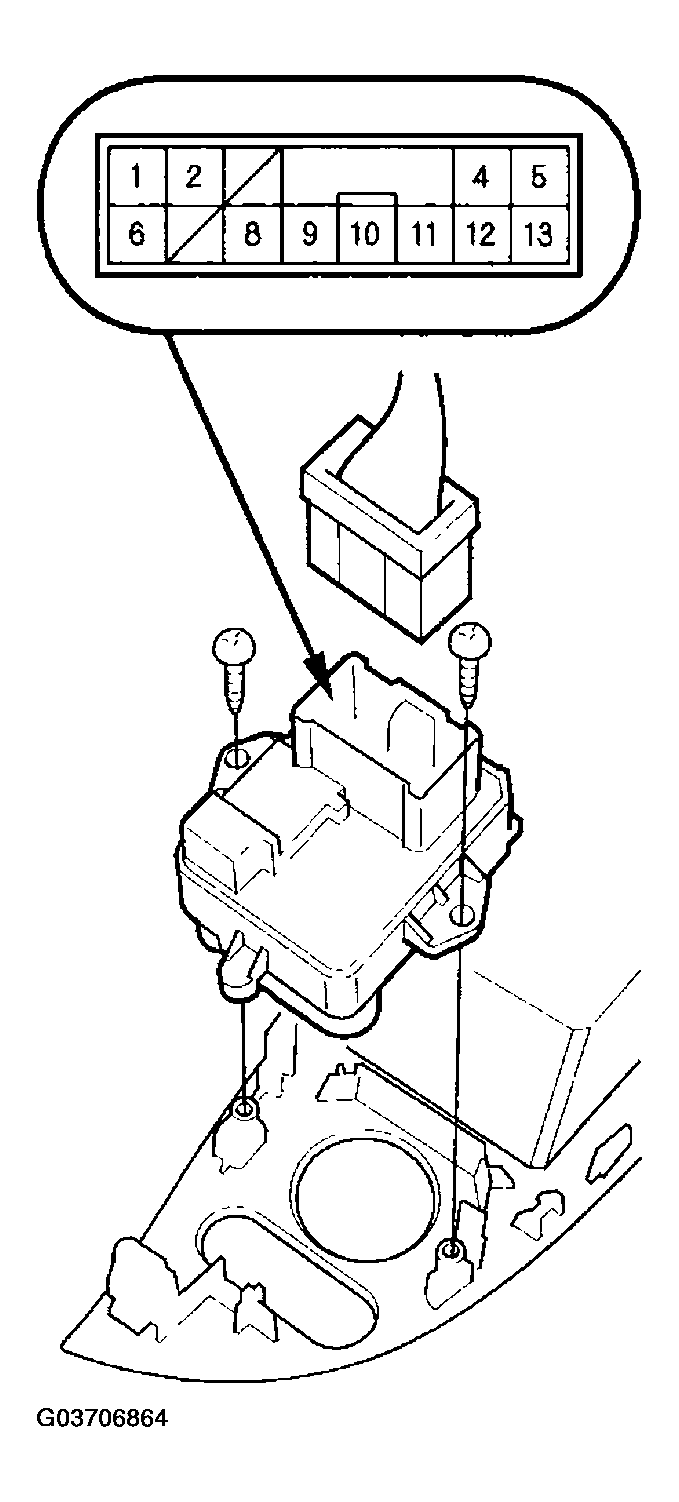

Fig 1: Disconnecting 13P Connector From Power Mirror Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the tables shown in Fig 2 & Fig 3 .

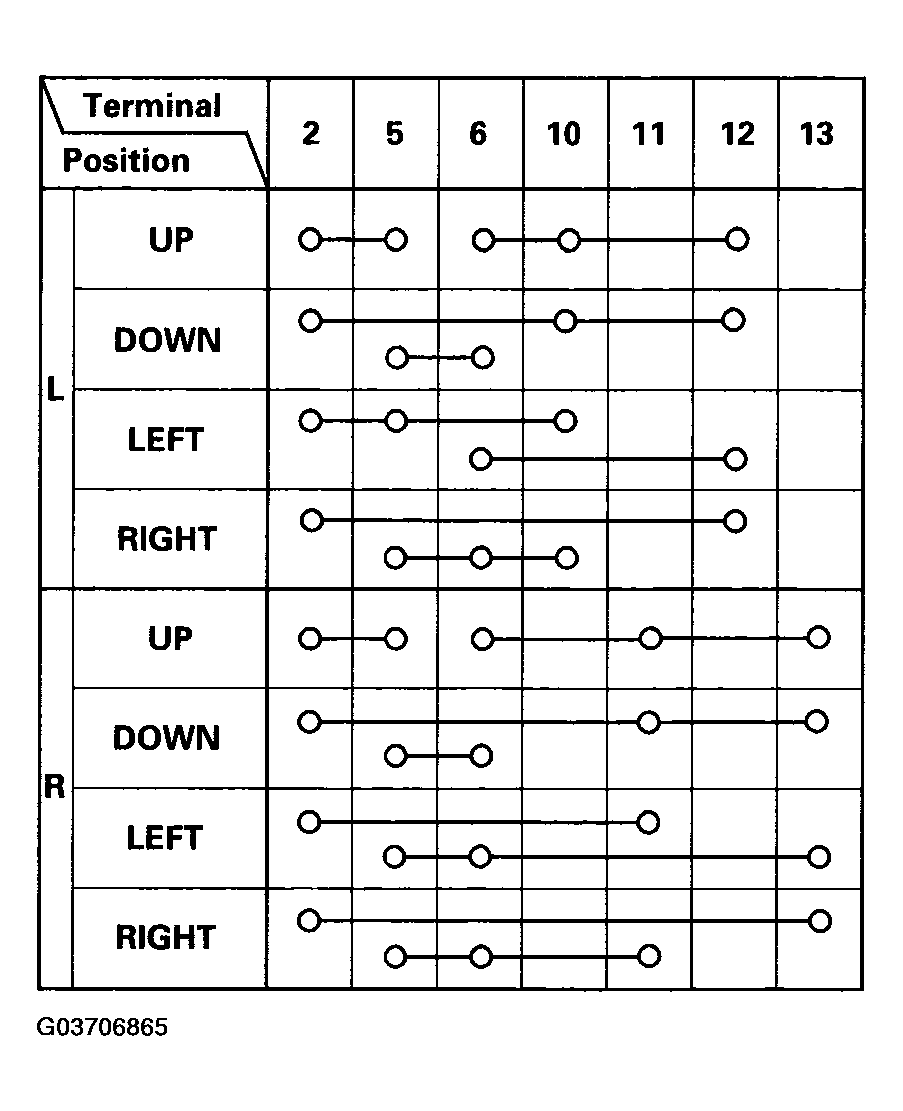

Fig 2: Checking Continuity Between Terminals In Each Switch Position Table - Mirror Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Checking Continuity Between Terminals In Each Switch Position Table - Defogger Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the screws and replace the power mirror switch.
