Circuit Diagram
Circuit Diagram

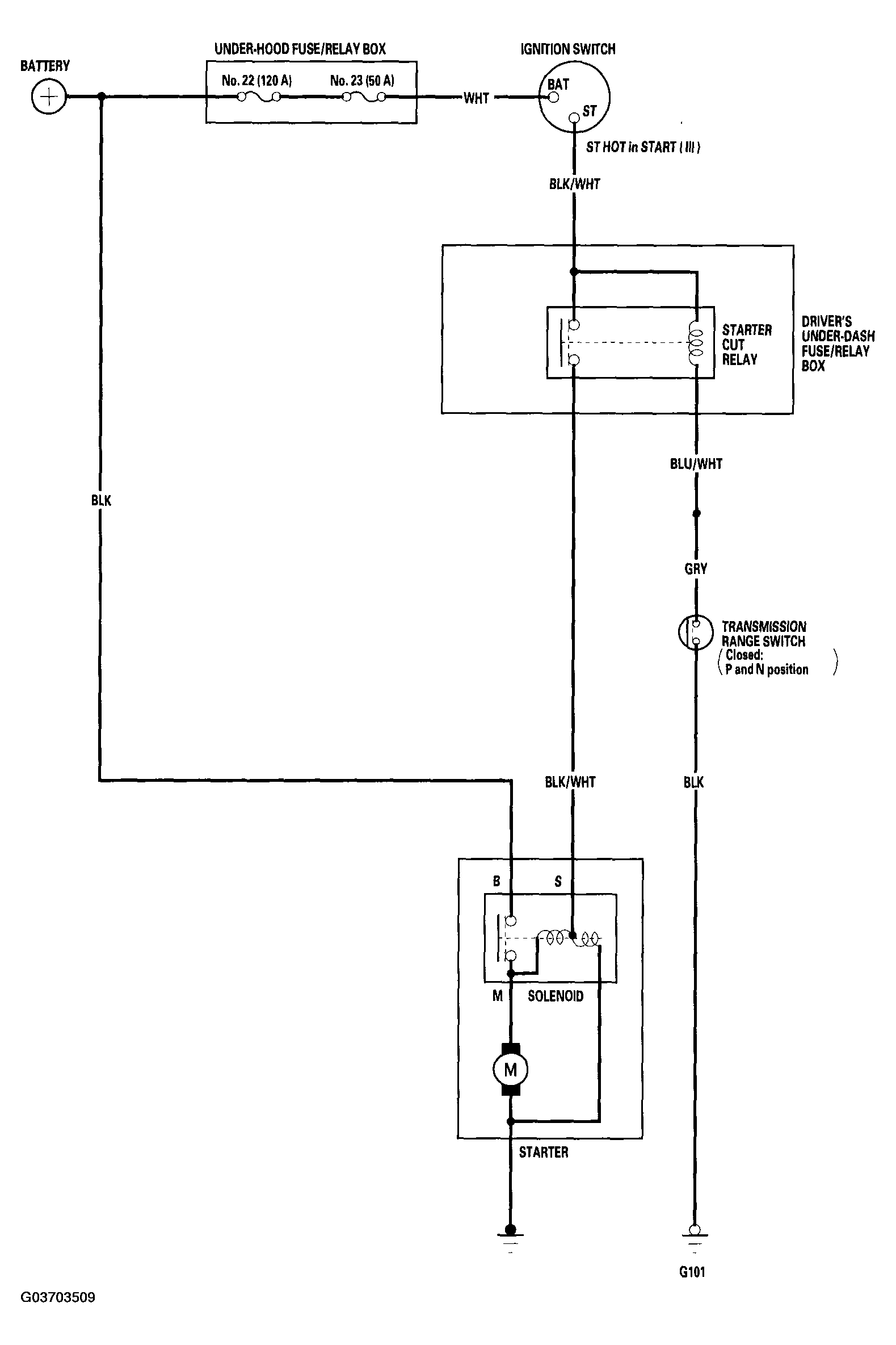

Fig 1: Circuit Diagram - Starting System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
