J35A7 Engine

  1. Remove the battery.
  2. Remove the battery base (see step 12 in ENGINE REMOVAL  ).
  3. Disconnect the front active control engine mount (ACM) actuator connector (A).

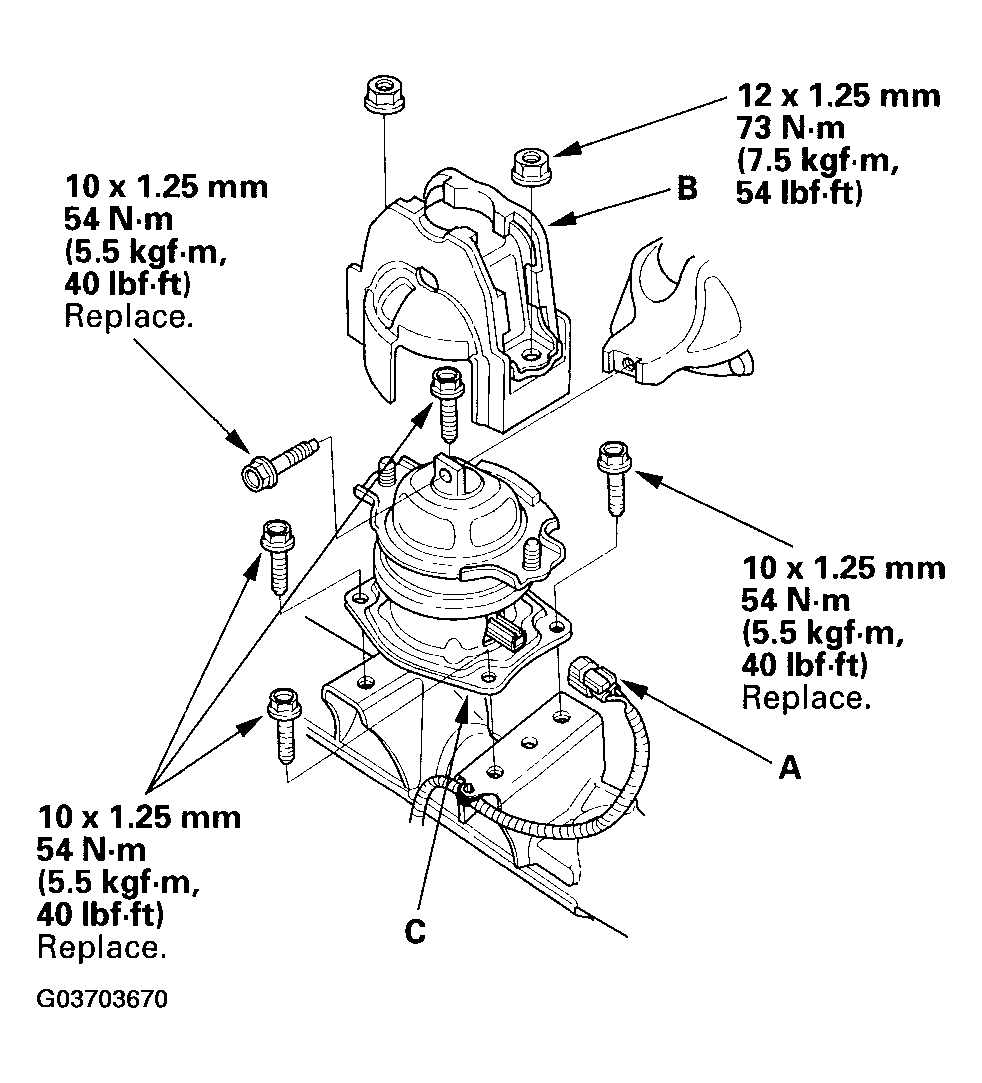

    Fig 1: Disconnecting Front ACM Actuator Connector (J35A7 Engine)
    G03703670Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the front engine mount stop (B), then remove the front engine mount (C).
  5. Install the front engine mount in the reverse order of removal.
