Engine Coolant Temperature (ECT) Sensor 1/Engine Coolant Temperature (ECT) Sensor 2

The ECT sensor/ECT sensor 2 is a temperature dependent resistor (thermistor). The resistance of the thermistor decreases as the engine coolant temperature increases.

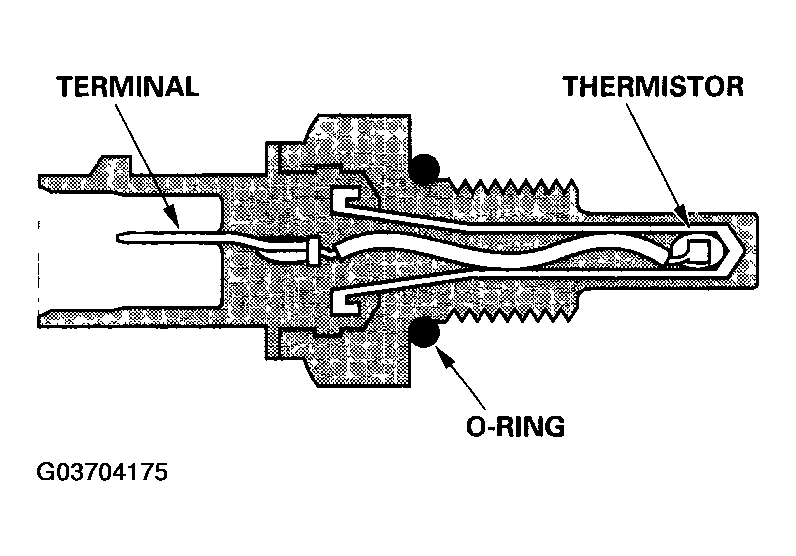

Fig 1: Identifying ECT Sensor 1/ECT Sensor 2

Courtesy of AMERICAN HONDA MOTOR CO., INC.
