Air Cleaner Removal/Installation
Remove the bolts (A).

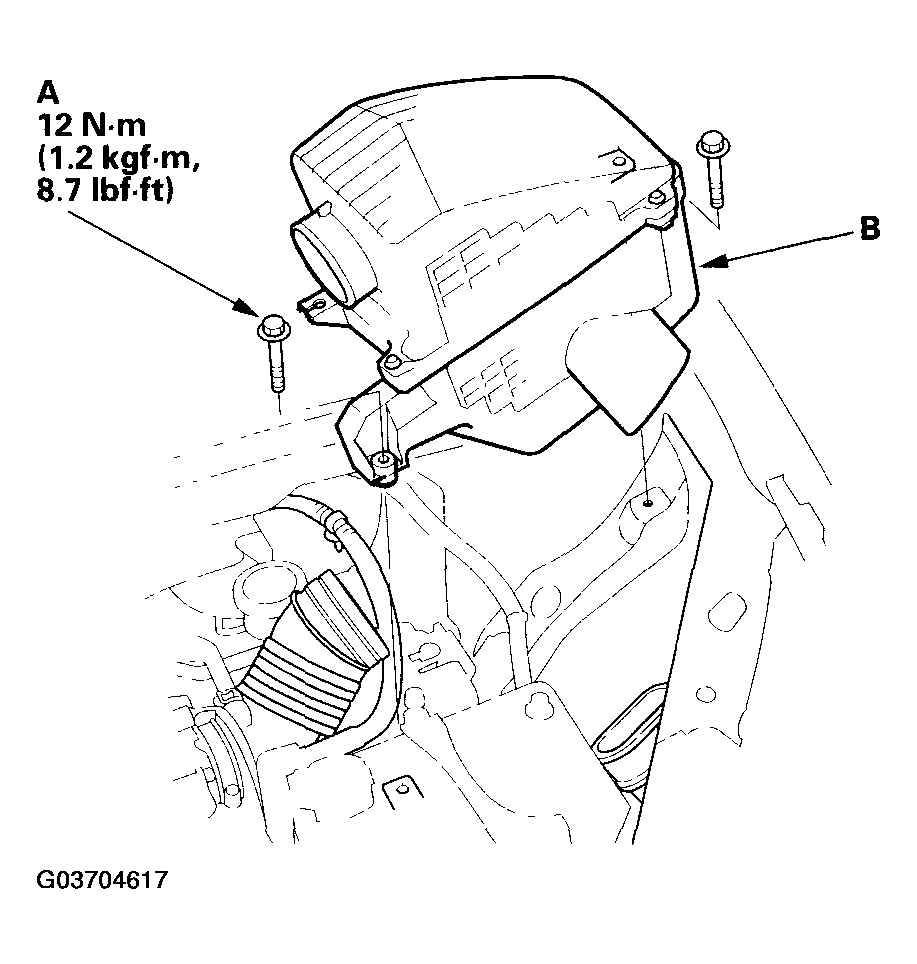

Fig 1: Removing Air Cleaner Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner housing (B).
Install the parts in the reverse order of removal.
