EOP Sensor Removal/Installation

Remove the intake manifold cover (see step 1 in REMOVAL ).
Remove the EOP sensor 3P connector (A).

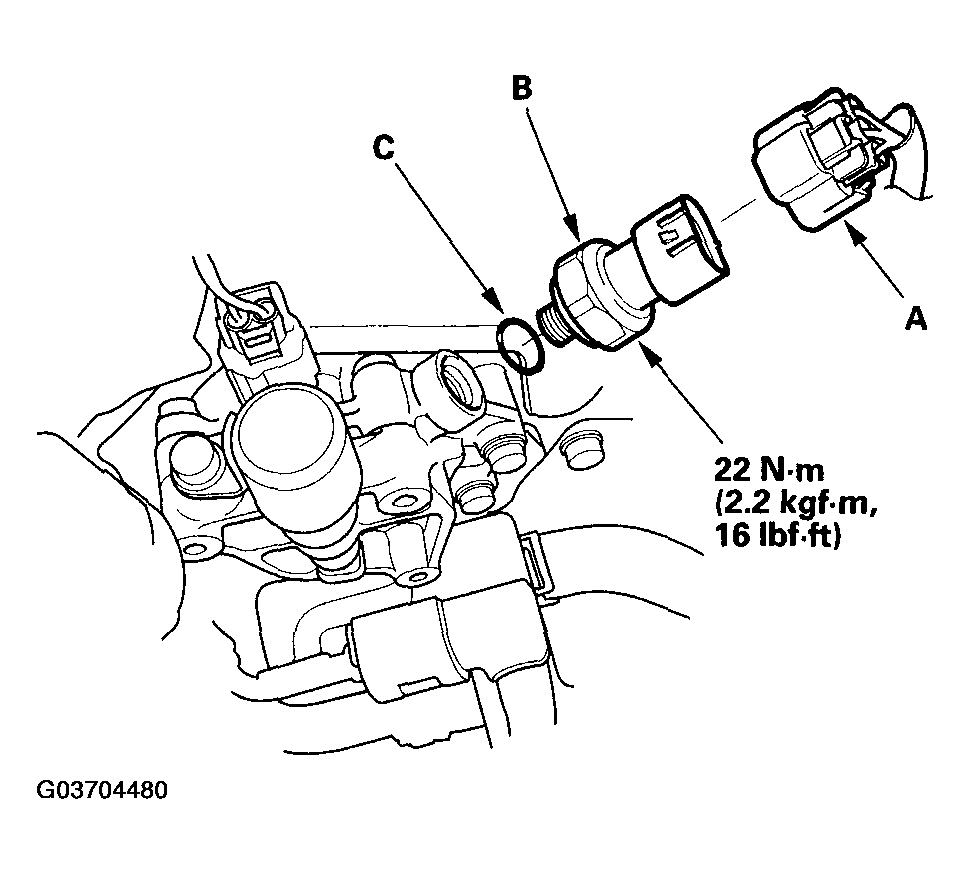

Fig 1: Removing EOP Sensor 3P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EOP sensor (B).
Install the EOP sensor in the reverse order of removal with a new O-ring (C).
