Odyssey EX
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End Views
›
Cable Reel Connector End View
Cable Reel Connector End View

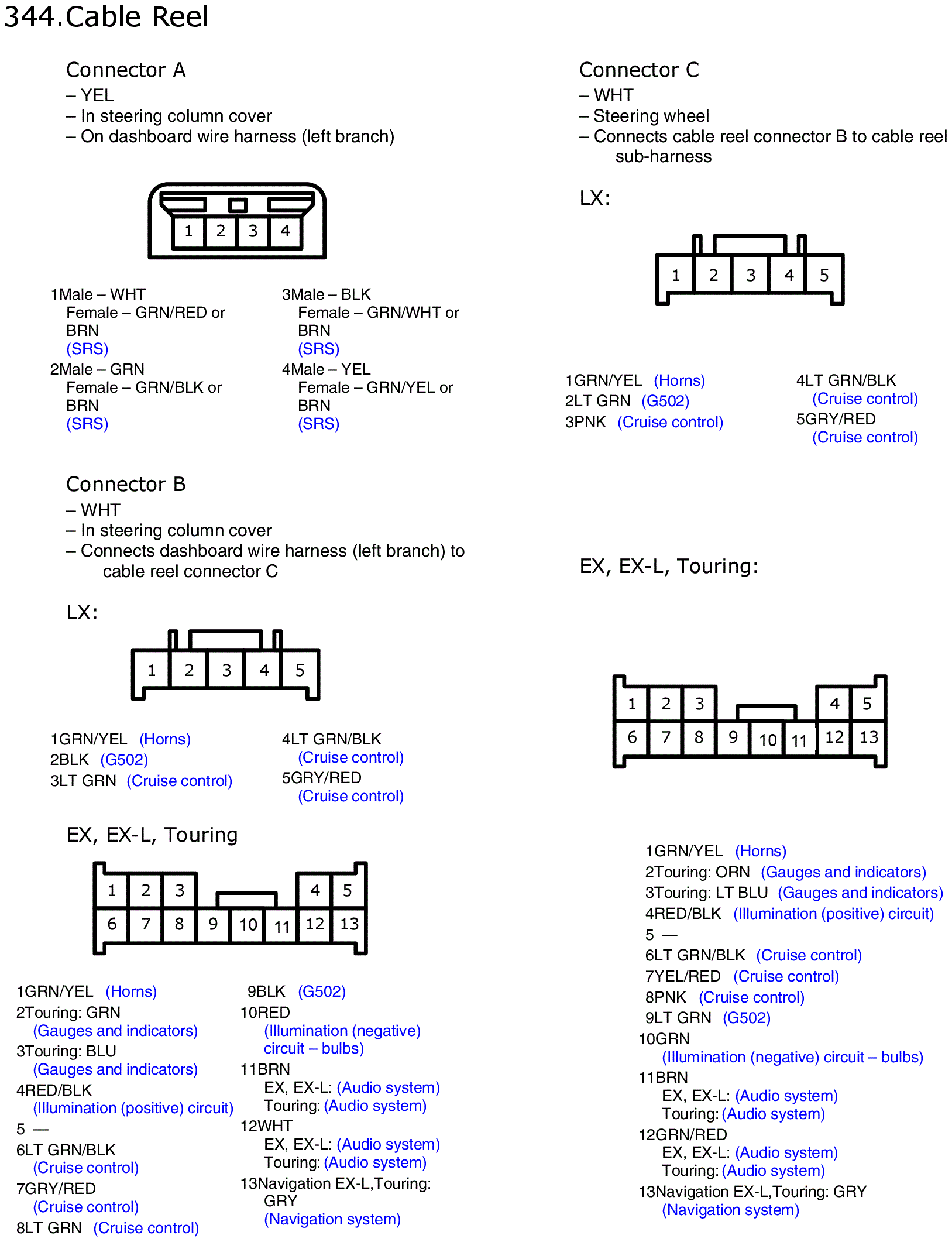

Fig 1: Cable Reel Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
