Park Pin Switch Replacement

  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL ).
  2. Remove the tape from the harness.
  3. Remove the harness band.

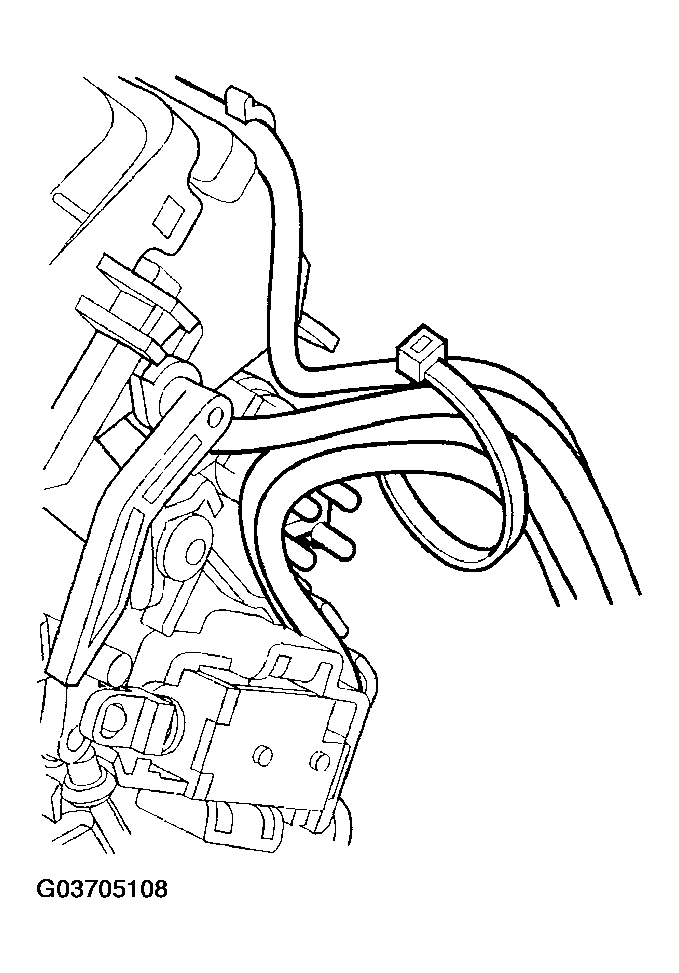

    Fig 1: Removing Harness Band
    G03705108Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the A/T gear position indicator panel, and move it up.

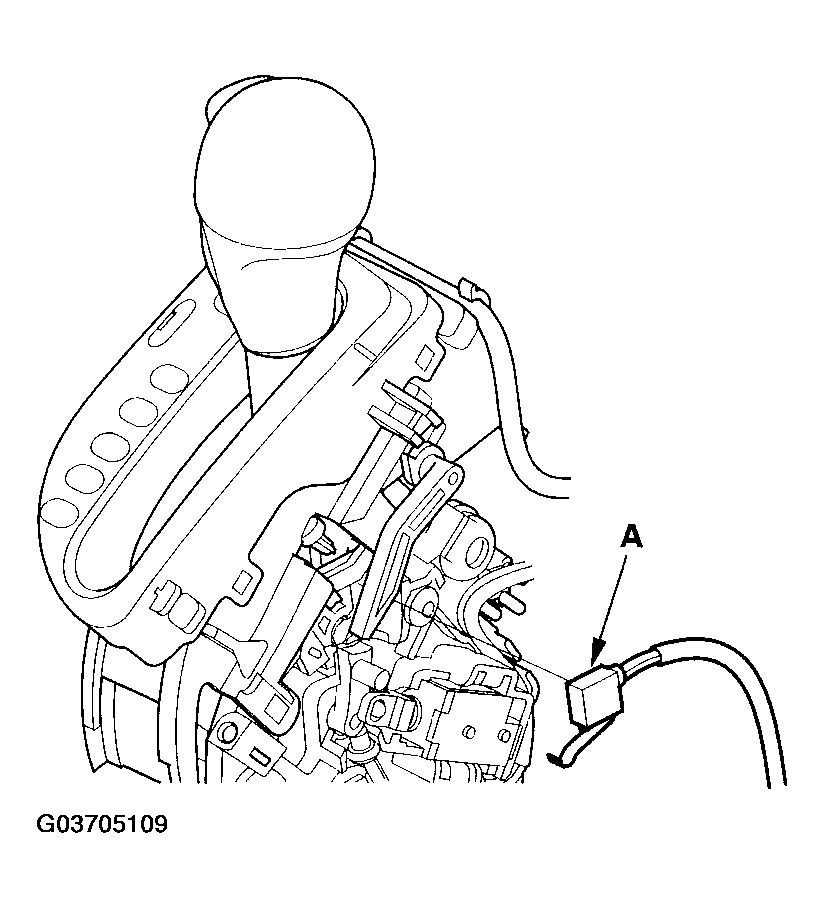

    Fig 2: Removing A/T Gear Position Indicator Panel
    G03705109Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the park pin switch (A).
  6. Install the new park pin switch, and install the A/T gear position indicator panel.
  7. Route the harnesses along the harness guide (A), and tie the harnesses and guide with the new band (B).

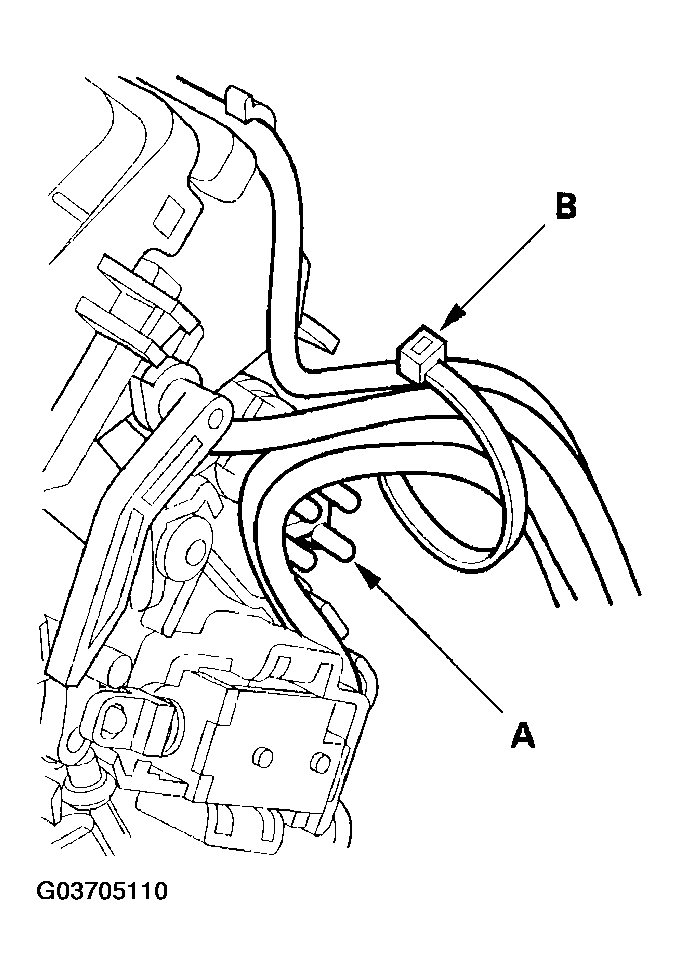

    Fig 3: Routing Harnesses Along Harness Guide
    G03705110Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Tie the harnesses together into bundles with new tape (A) in two places.

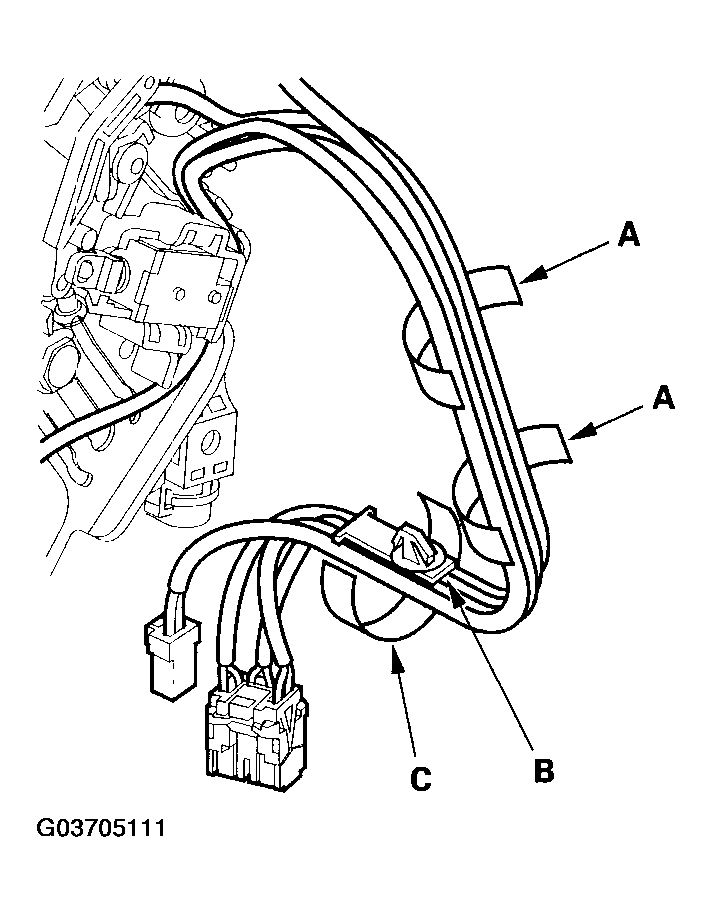

    Fig 4: Tying Harnesses Into Bundles With Tape
    G03705111Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Tie the harnesses and the harness clamp (B) together into a bundle with tape (C).
  10. Install the shift lever assembly (see SHIFT LEVER INSTALLATION ).
