Drivelines & Axles
›
Wheel Hubs
›
Rear Suspension
›
Spring/Bump Stop Replacement
›
Exploded View
Exploded View

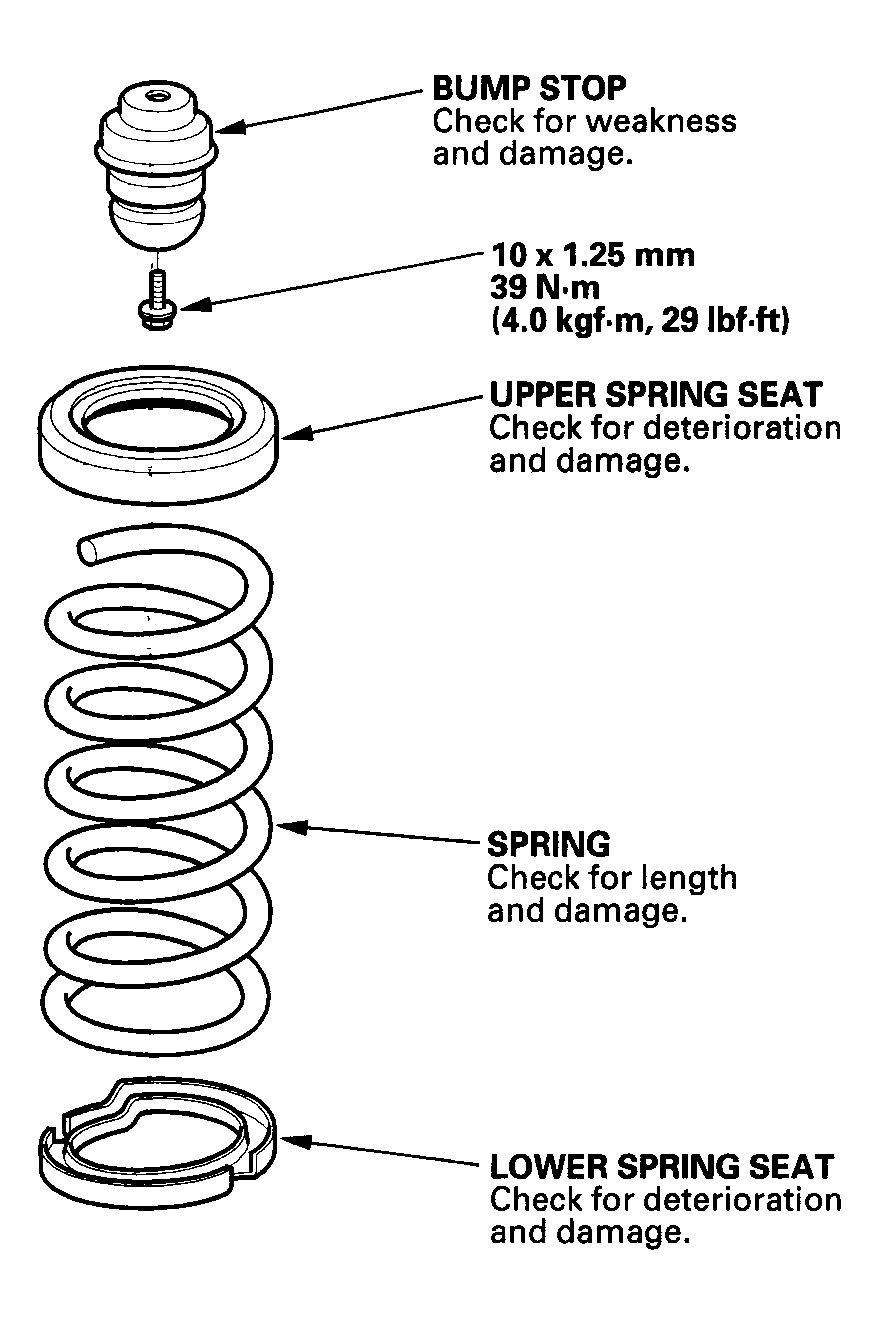

Fig 1: Exploded View Of Spring/Bump Stop
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
