Repair and Diagnosis (Single Page)
›
Electrical
›
Charging Systems
›
Charging System
›
Circuit Diagram
Circuit Diagram

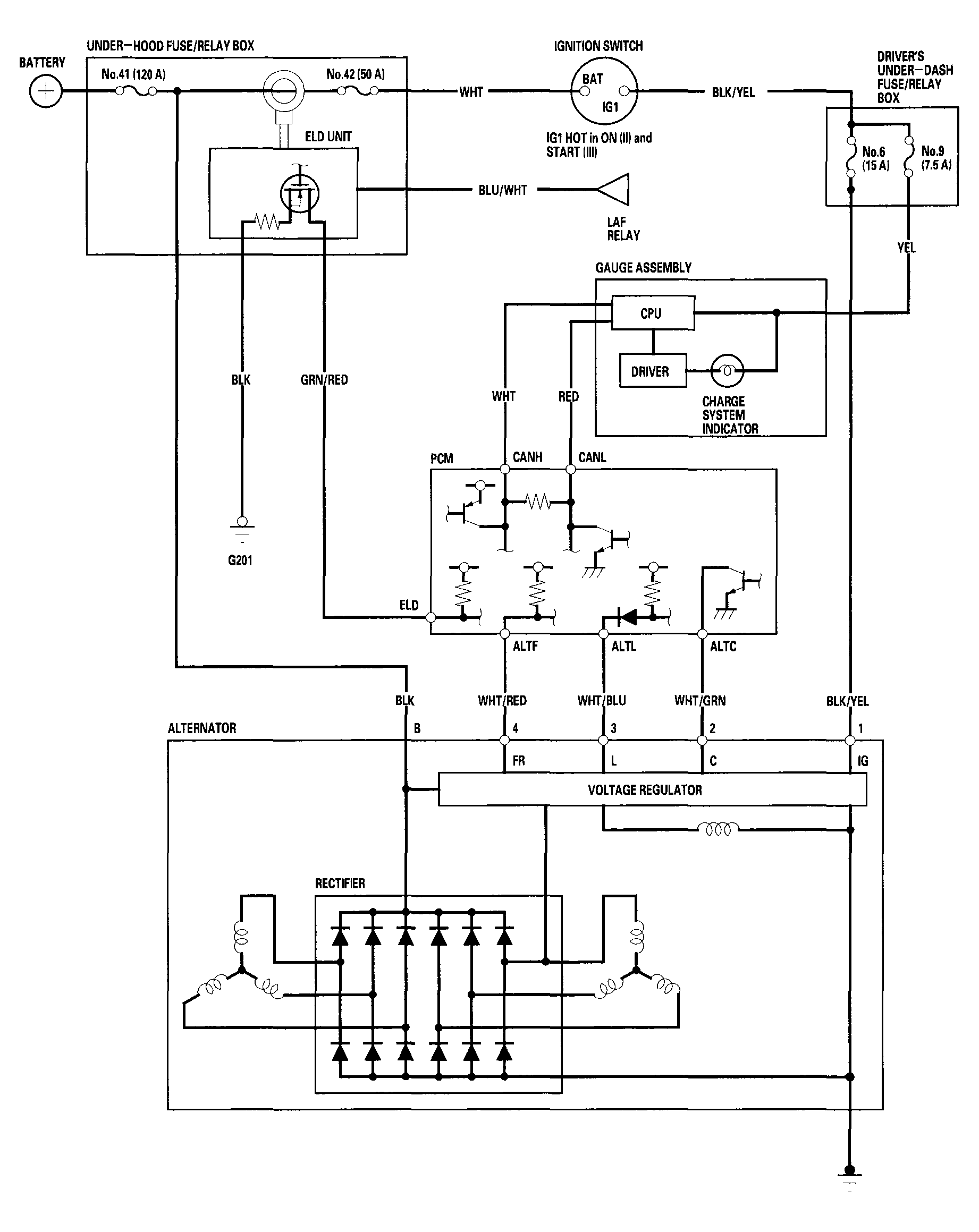

Fig 1: Charging System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
