With Navigation

  1. Side the driver's seat backward.
  2. Remove the four mounting nuts from the CD changer (A).

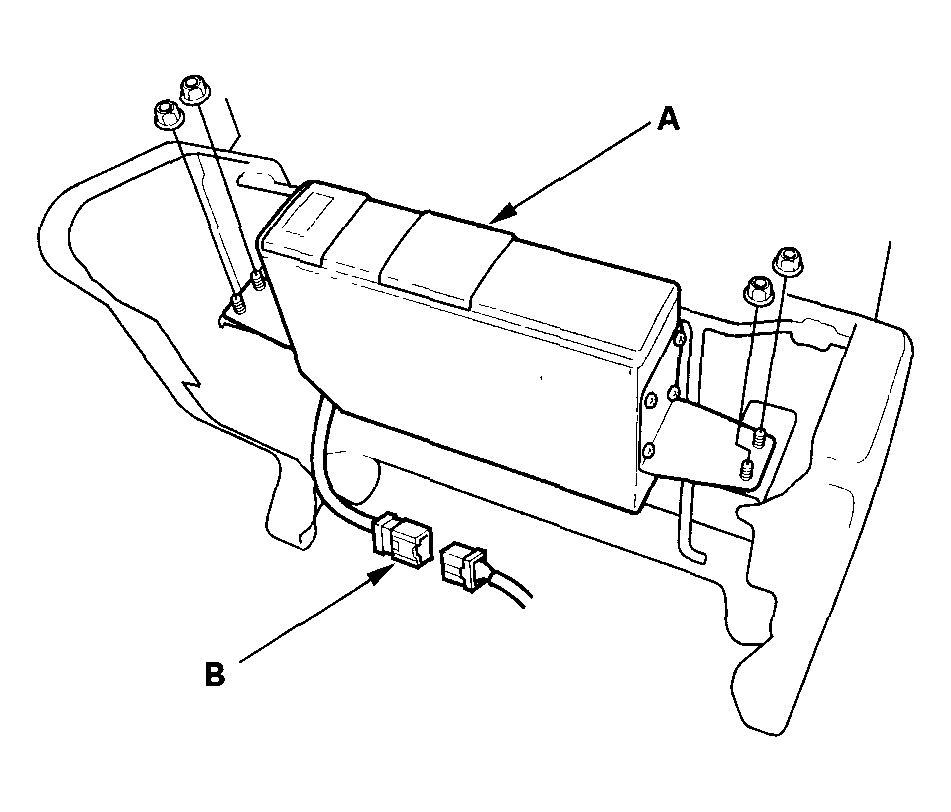

    Fig 1: Removing Four Mounting Nuts From CD Changer (A)
    G04548487Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 10P connector (B) and remove the CD changer.
  4. Remove the four mounting screws, then remove the bracket.
    Fig 2: Removing Four Mounting Screws And Bracket
    G04548488Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install in the reverse order of removal.
