Display Unit Removal/Installation

Remove the center panel (see DRIVER'S SWITCH PANEL REMOVAL/INSTALLATION ).
Remove the display unit (A).

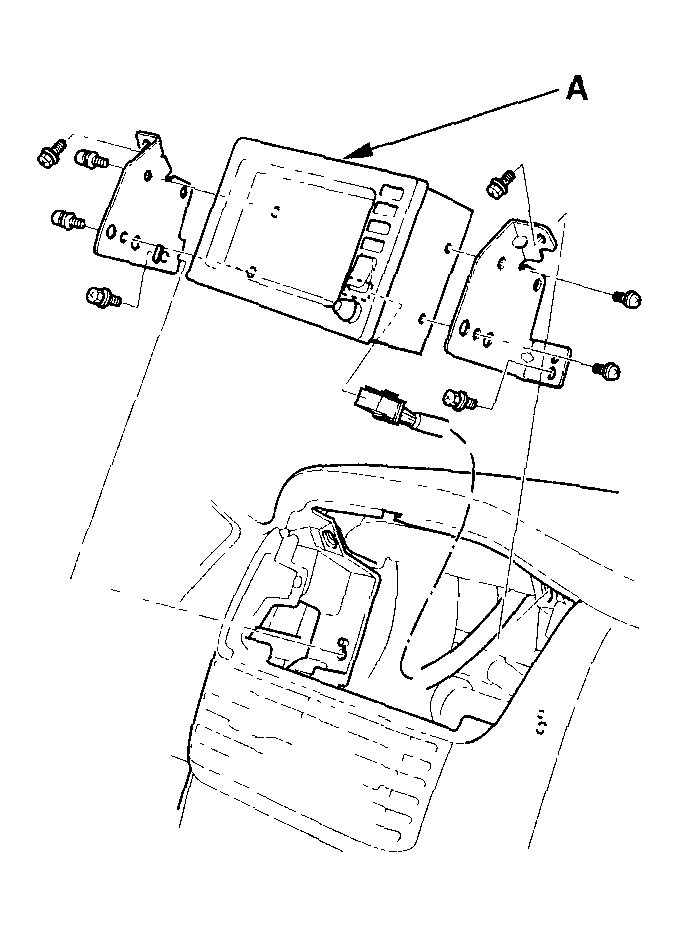

Fig 1: Removing Display Unit (A)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
