Forced Starting of Display

Special Tools Required

SCS service connector 07PAZ-0010100

1. Slide the passenger's seat (A) forward.

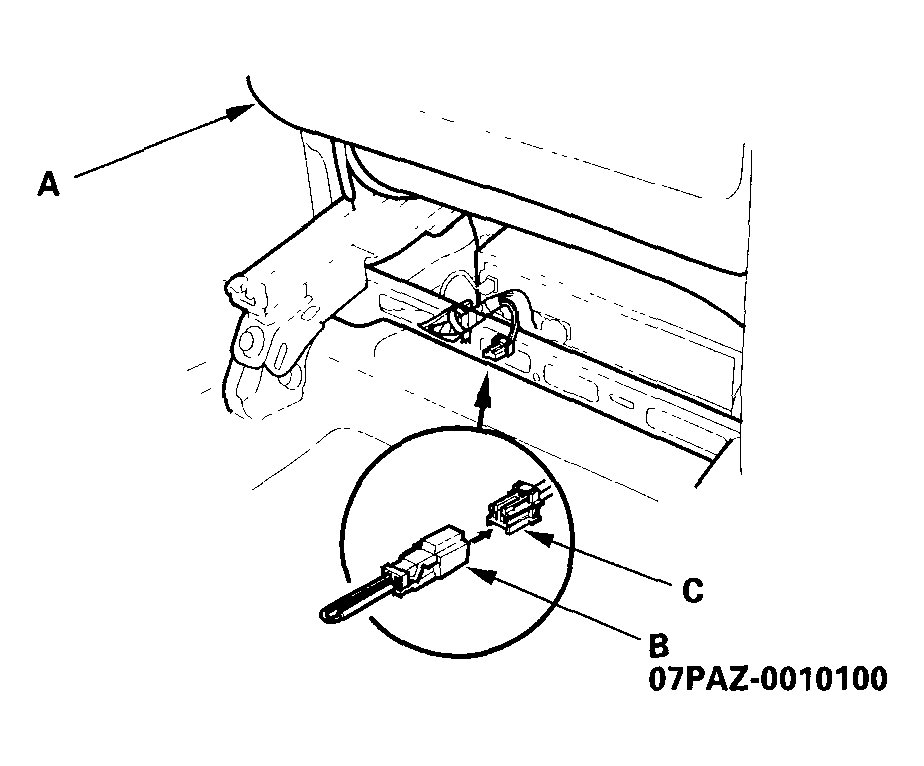

   Fig 1: Sliding Passenger's Seat Forward

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the cover attached to the seat to gain access to the navigation unit.
3. Connect the SCS service connector (B) to the navigation service check connector (C) located behind the navigation unit.
4. Check that the diagnosis menu for the picture diagnosis starts up, and then changes to the system link menu.
5. If the display does not turn on, turn the ignition switch OFF, press and hold the SET UP button (A), press and hold the joystick (B) up, then turn ignition switch to ACC (I).
   NOTE: If the display fails to light or the system link screen is not displayed, refer to no picture is shown on the display (see SYMPTOM TROUBLESHOOTING  ).
   Fig 2: Identifying System Link Screen

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
