Navigation Unit Removal/Installation

Slide the passenger's seat (A) to the rear.
Remove the navigation unit bracket (B) from the passenger's seat.

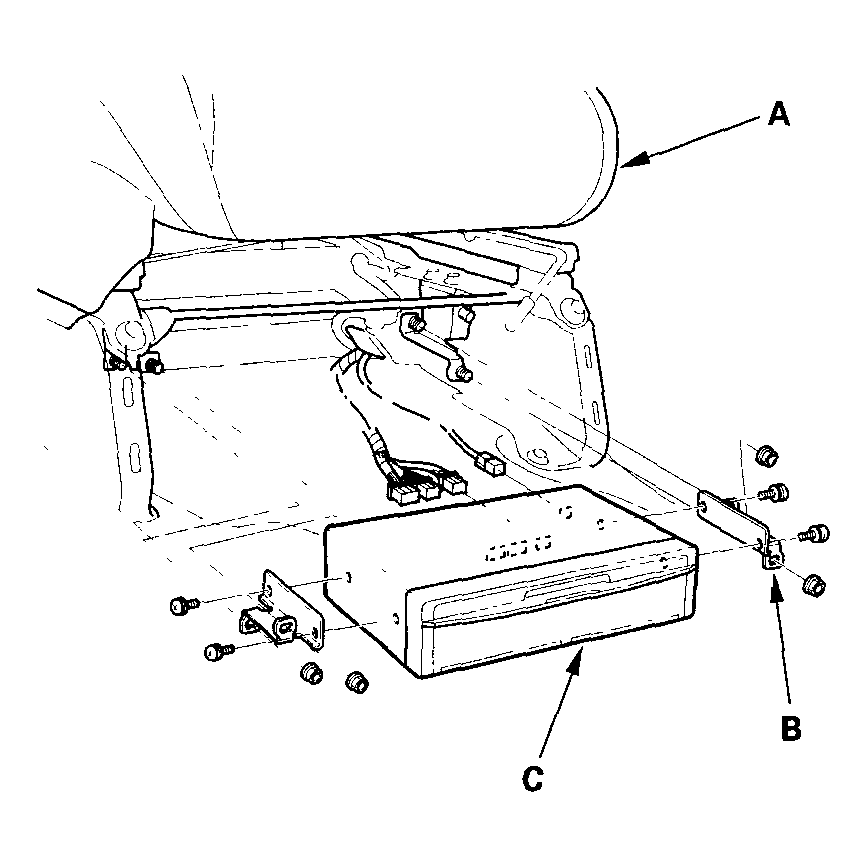

Fig 1: Removing Navigation Unit Bracket From Passenger's Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bracket from the navigation unit (C).
Install in the reverse order of removal.
