Door Locks
›
Keyless Entry/Security System
›
Circuit Diagram
Circuit Diagram

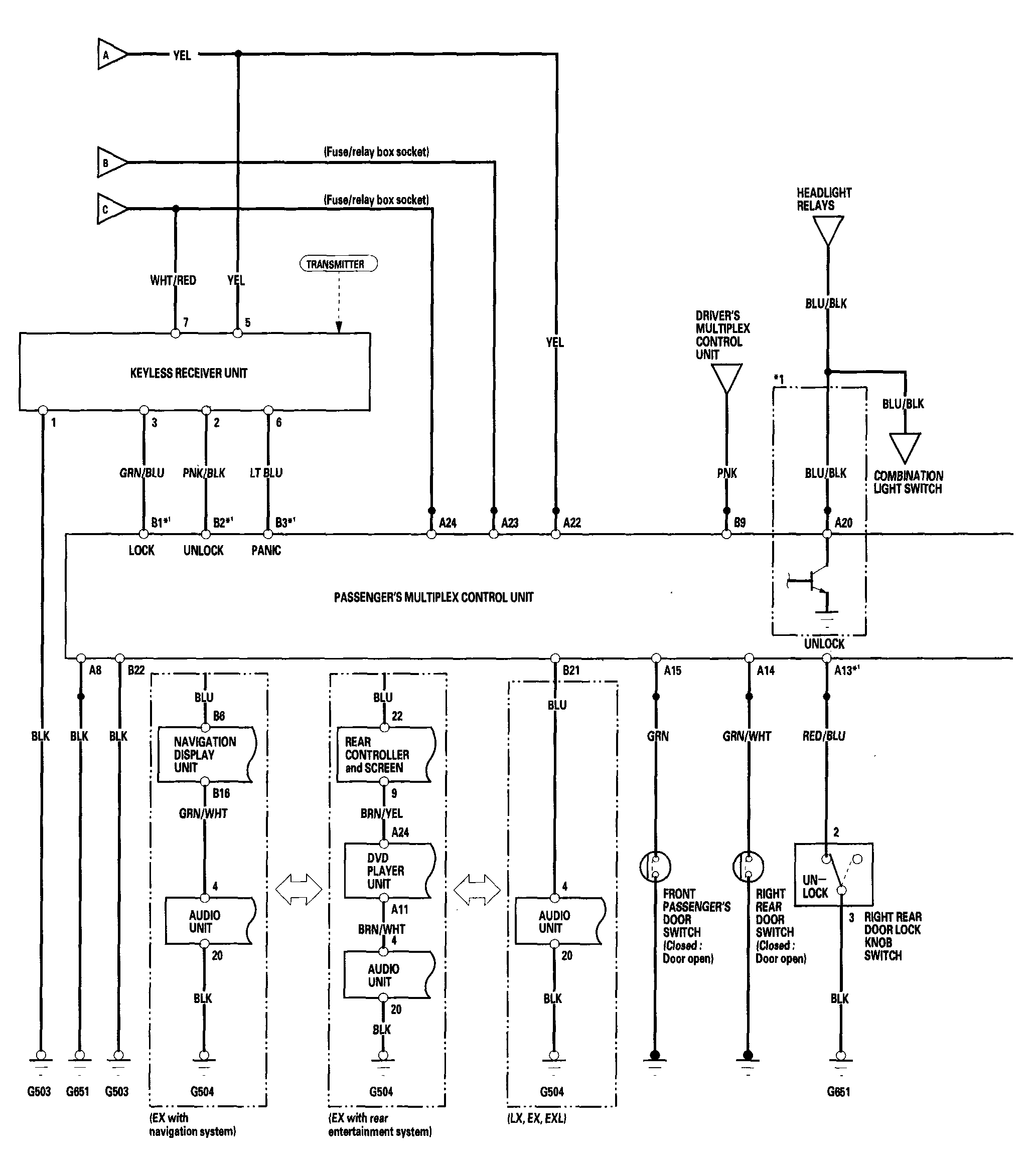

Fig 1: Keyless Entry/Security Alarm Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

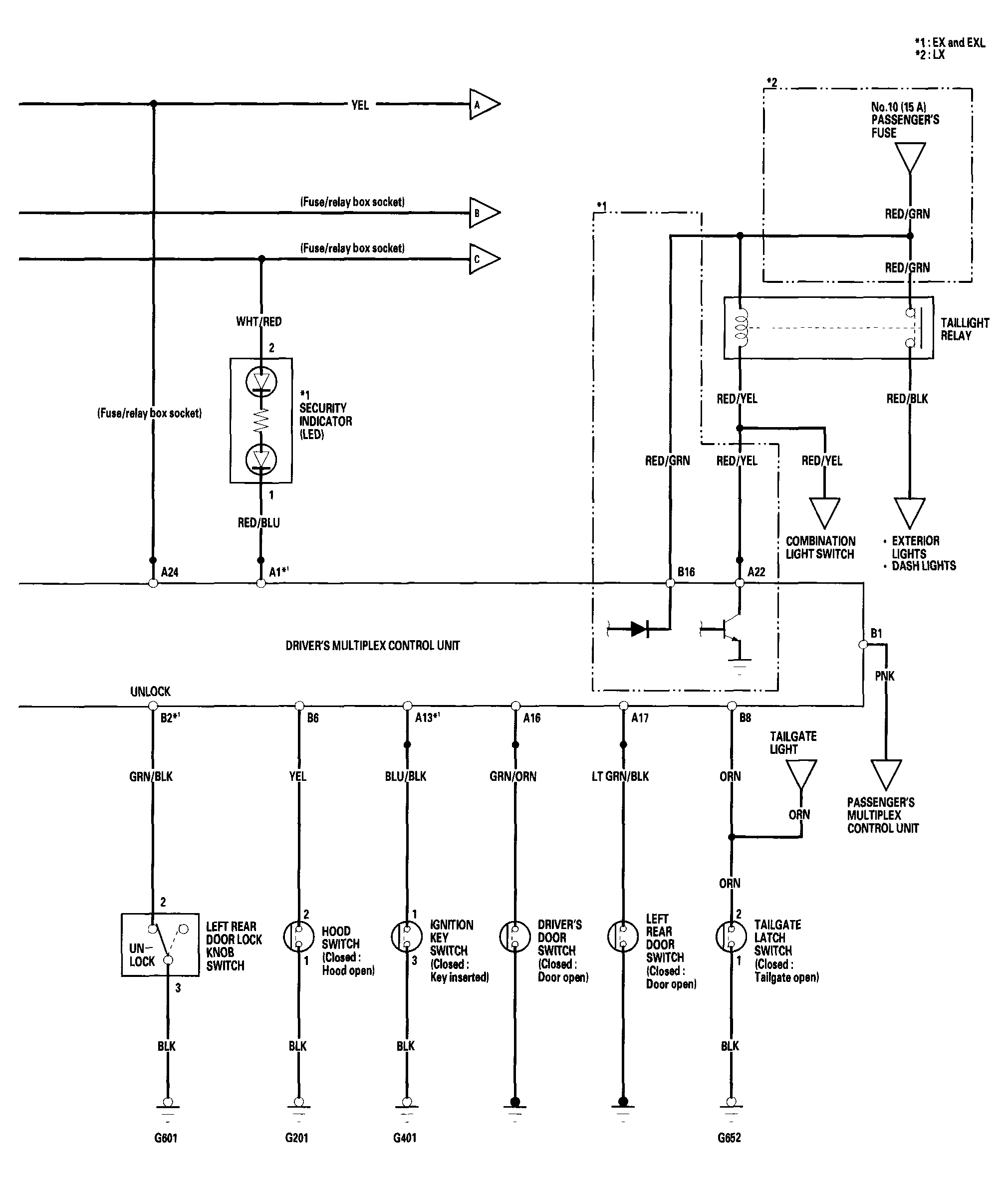

Fig 2: Drivers's Multiplex Control Unit Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

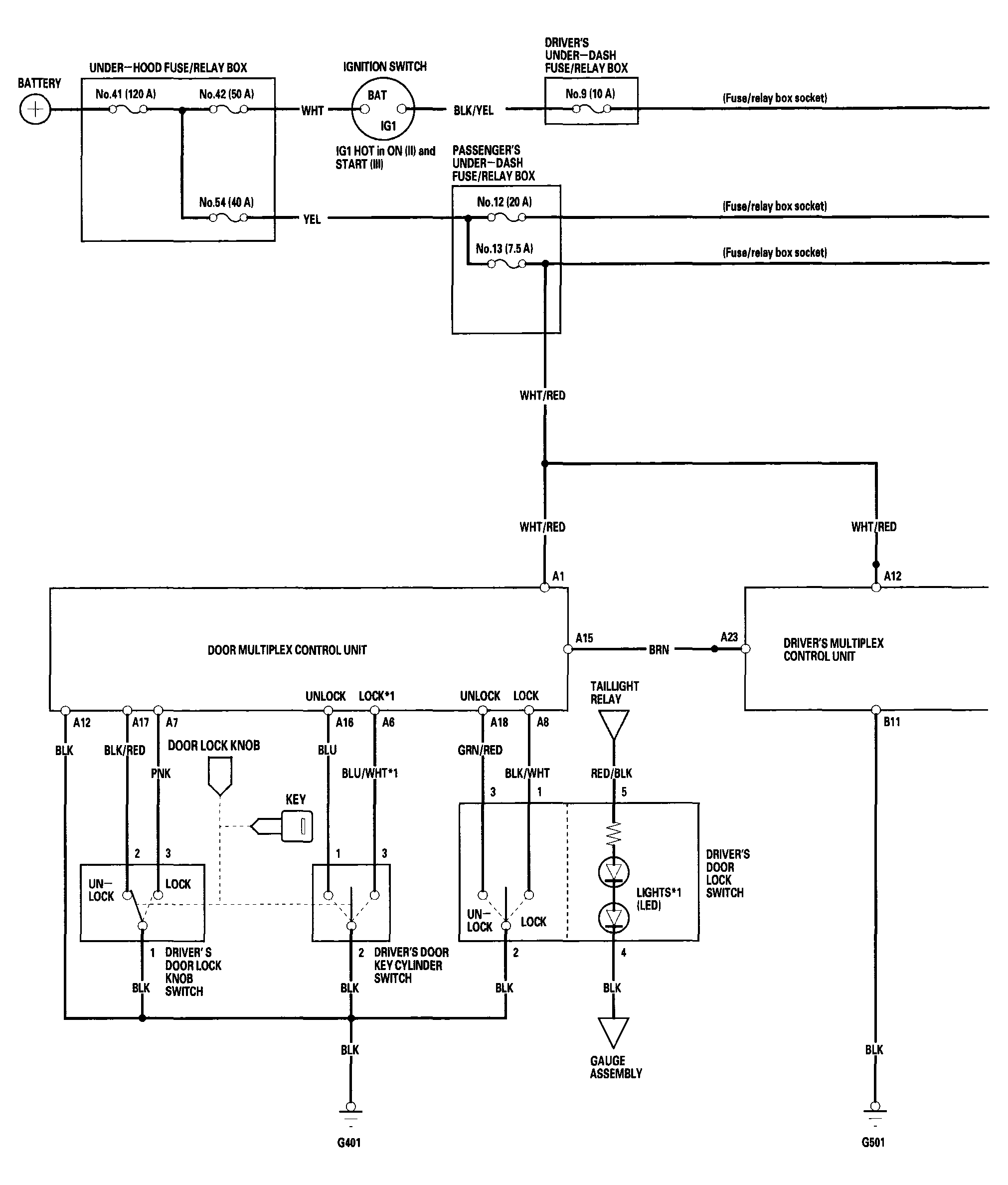

Fig 3: Keyless Entry/Security Alarm Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

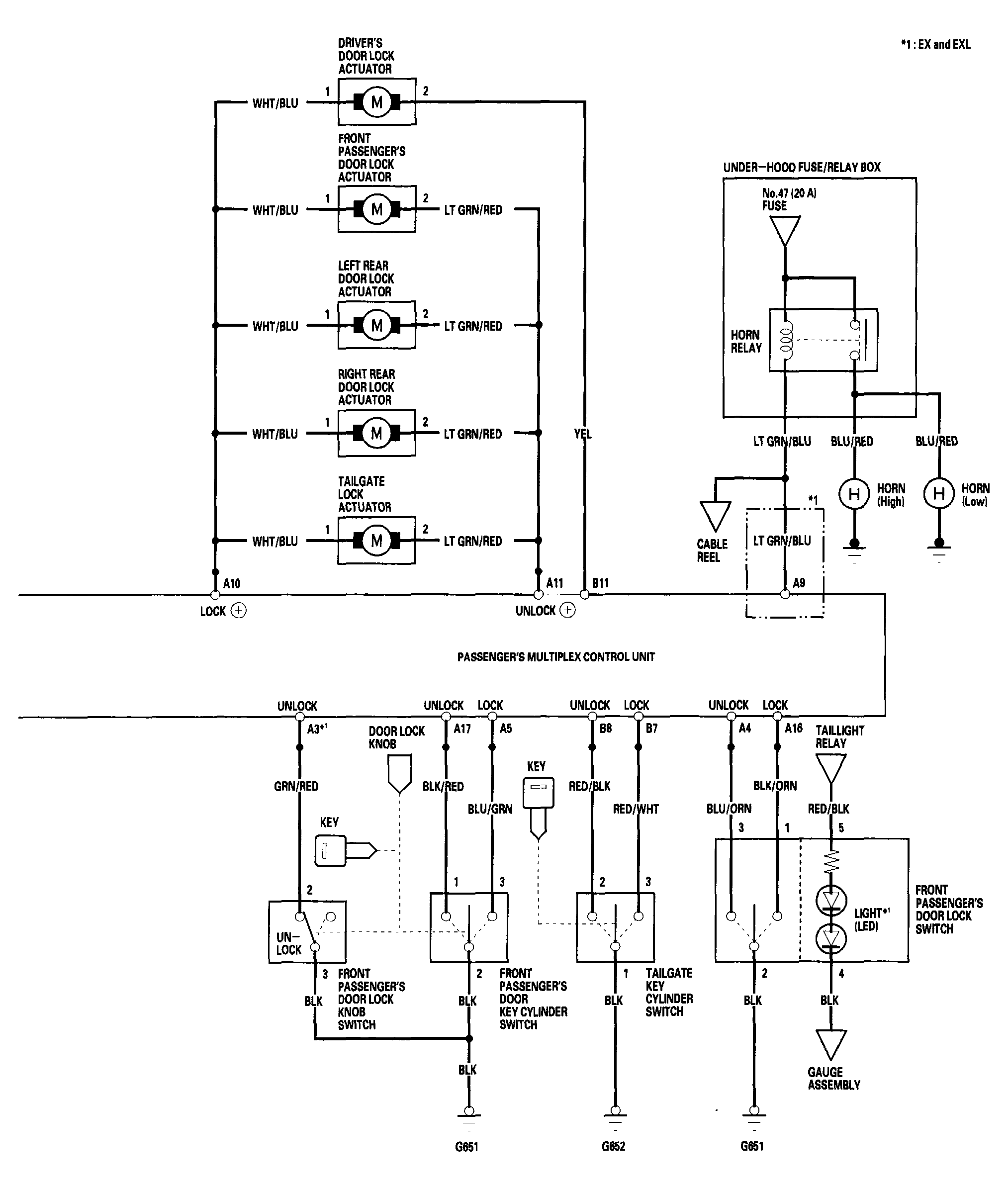

Fig 4: Passengers's Multiplex Control Unit Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
