Driver's Door

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 3P connector from the actuator.

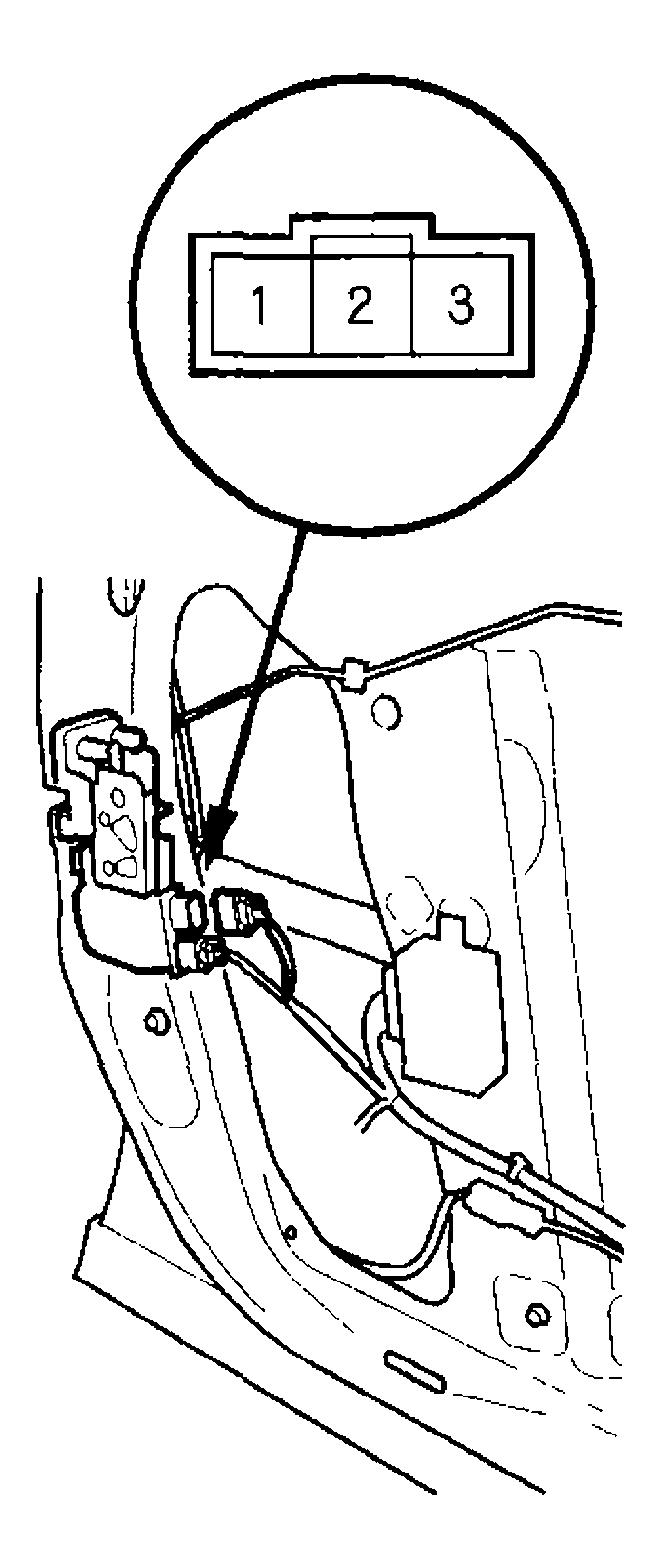

    Fig 1: Disconnecting 3P Connector From Actuator Driver's Door Side
    G04548449Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.
    • There should be continuity between the No. 1 and No. 3 terminals when the door lock knob switch is in the LOCK position and no continuity when it is in the UNLOCK position.
    • There should be continuity between the No. 2 and No. 3 terminals when the door lock knob switch is in the UNLOCK position and no continuity when it is in the LOCK position.
  4. If the continuity is not as specified, replace the door lock actuator.
