Component Location Index
Component Location Index

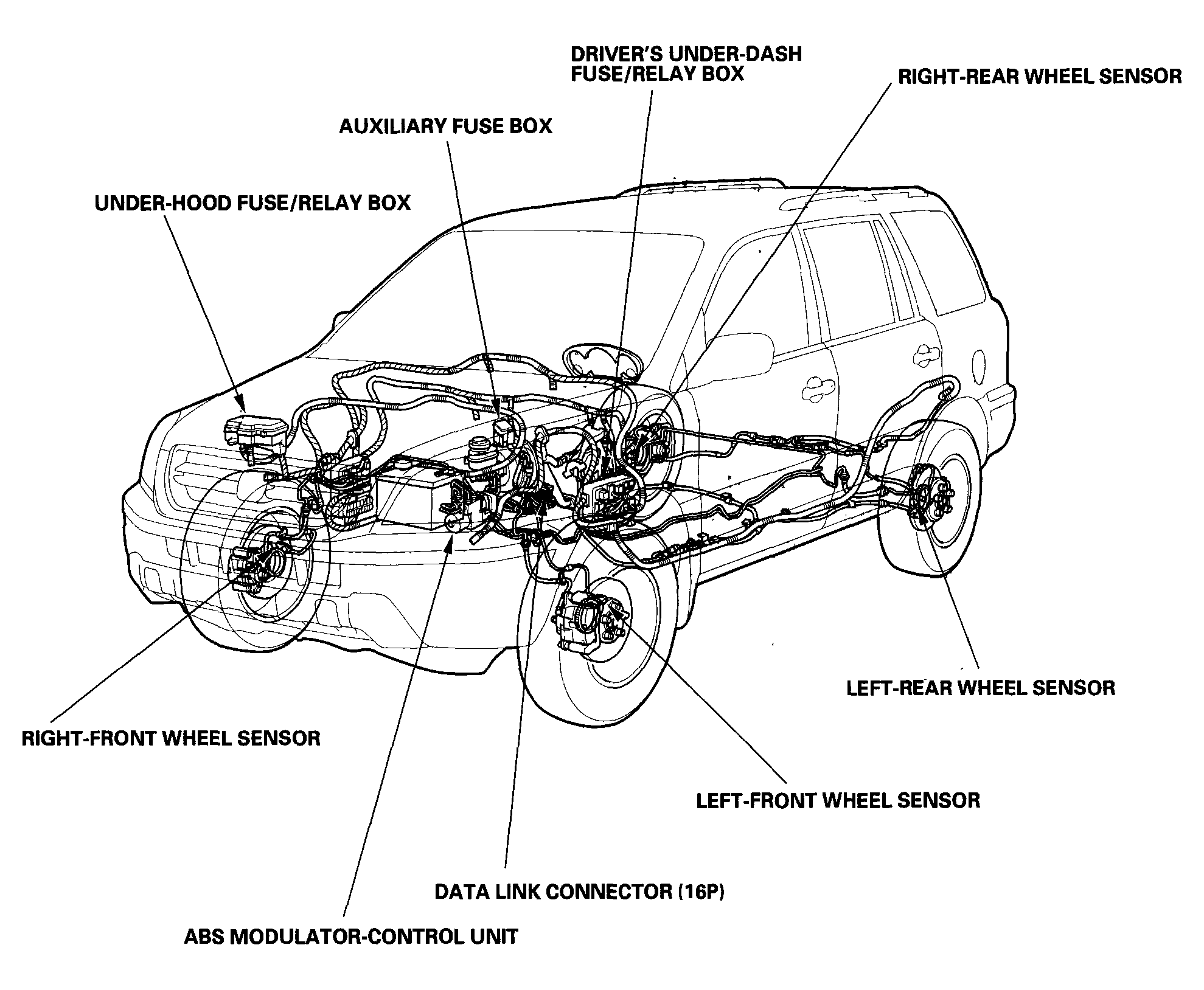

Fig 1: Identifying ABS (Anti-Lock Brake System) Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
