Wheel Sensor Replacement
NOTE:
Install the sensors carefully to avoid twisting the wires.

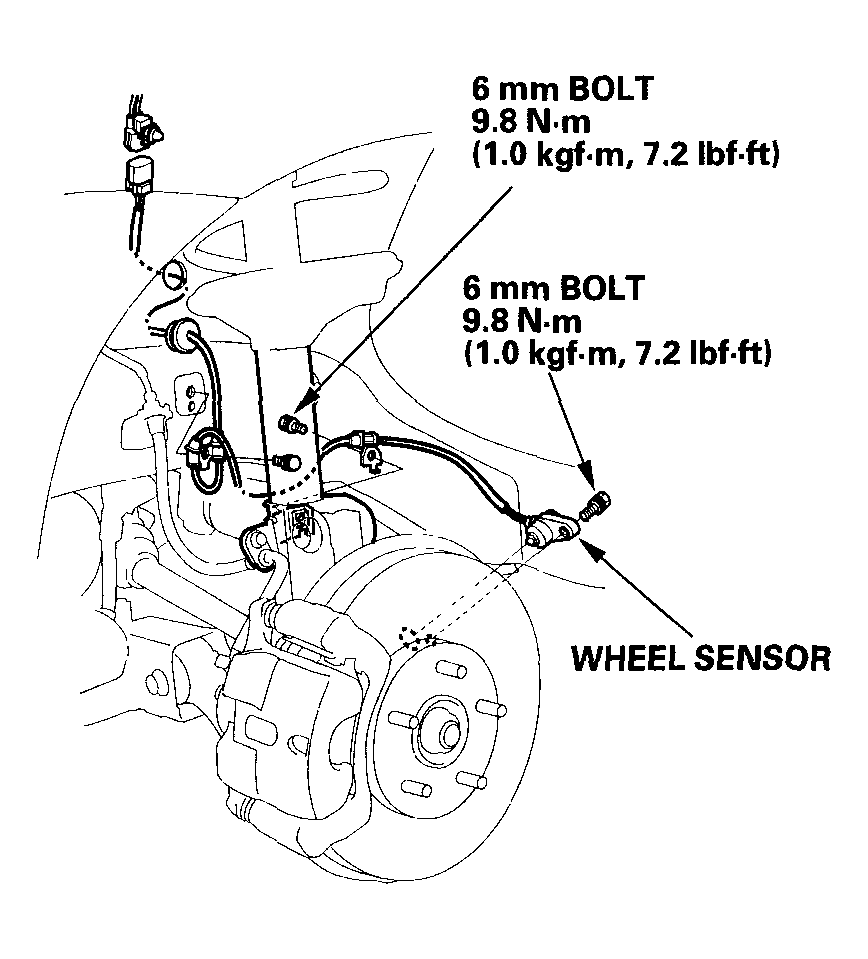

Front:
Fig 1: Removing Sensors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

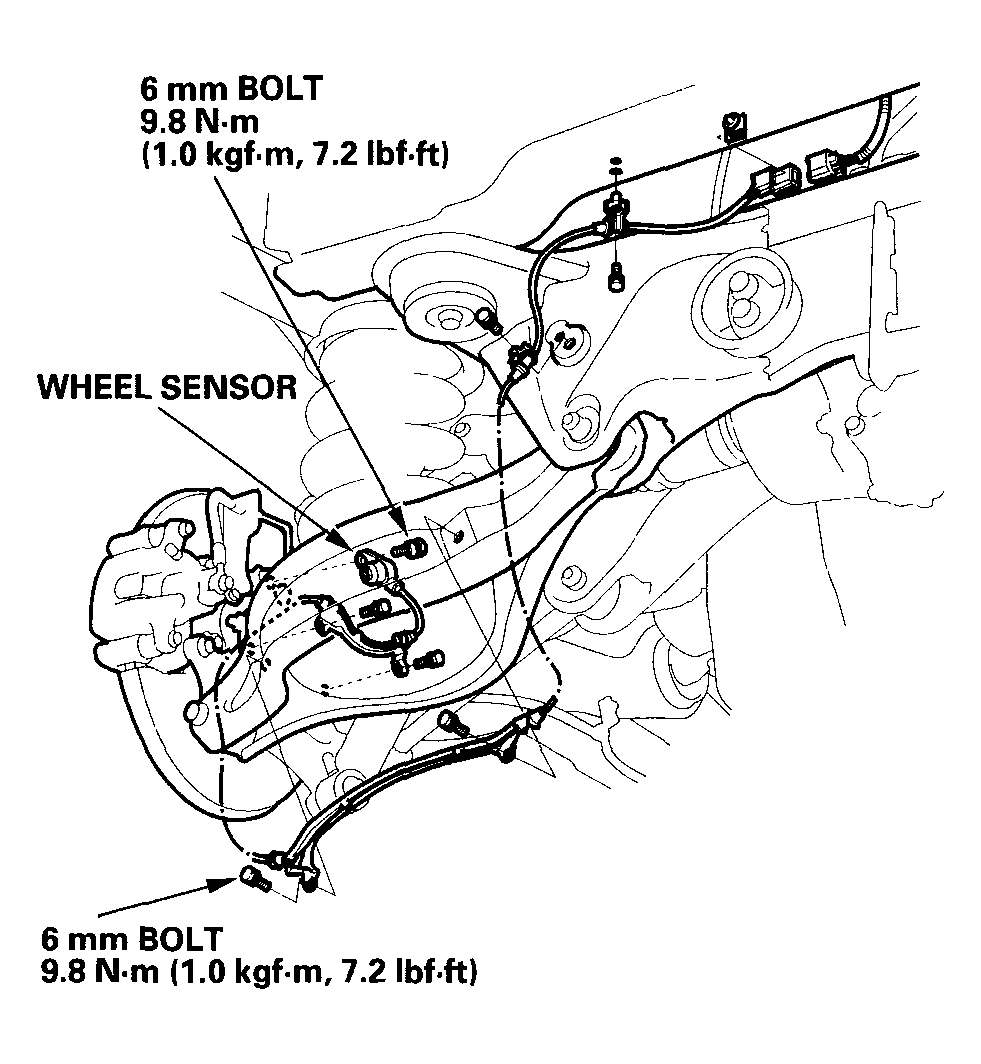

Rear:
Fig 2: Installing Sensors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
