System Indicator

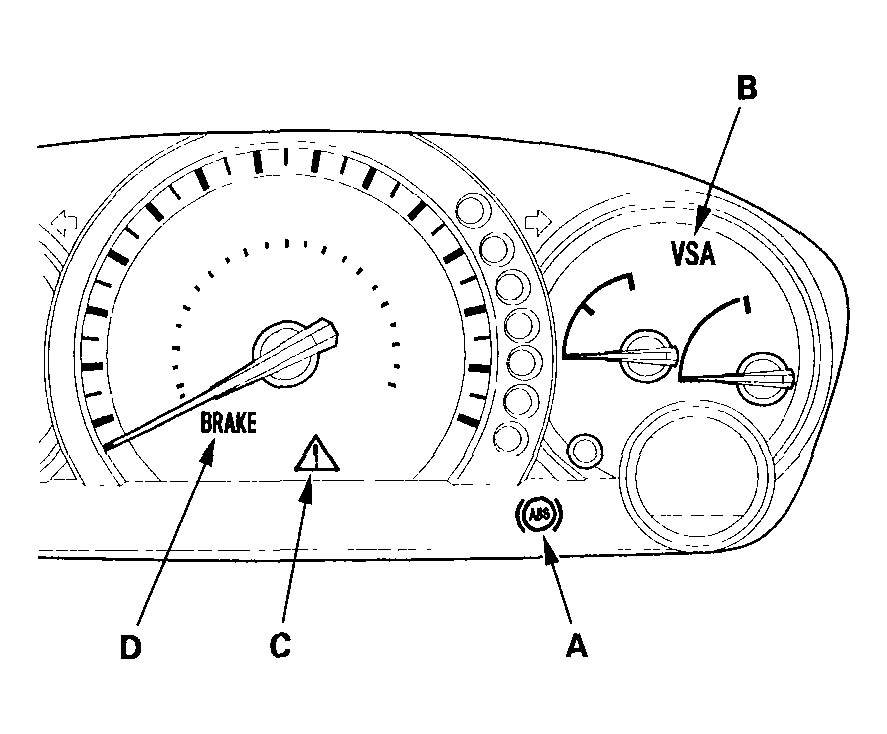

This system has four indicators: ABS indicator (A), VSA indicator (B), VSA activation indicator (C) and brake system indicator (D). When the system detects a problem, it turns on the appropriate indicators. Depending on the failure, the control unit determines which indicators are turned on.
- When ABS function is lost:
ABS indicator, VSA indicator and VSA activation indicator turn on.
- When VSA function is lost:
VSA indicator and VSA activation indicator turn on.
- When all functions are lost:
All four indicators turn on.
- When the gauge assembly detects F-CAN circuit problem:
ABS indicator, VSA indicator and brake system indicator turn on.
