Pressure reducing mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, outlet valve open.

Caliper fluid flows through the outlet valve to the reservoir.

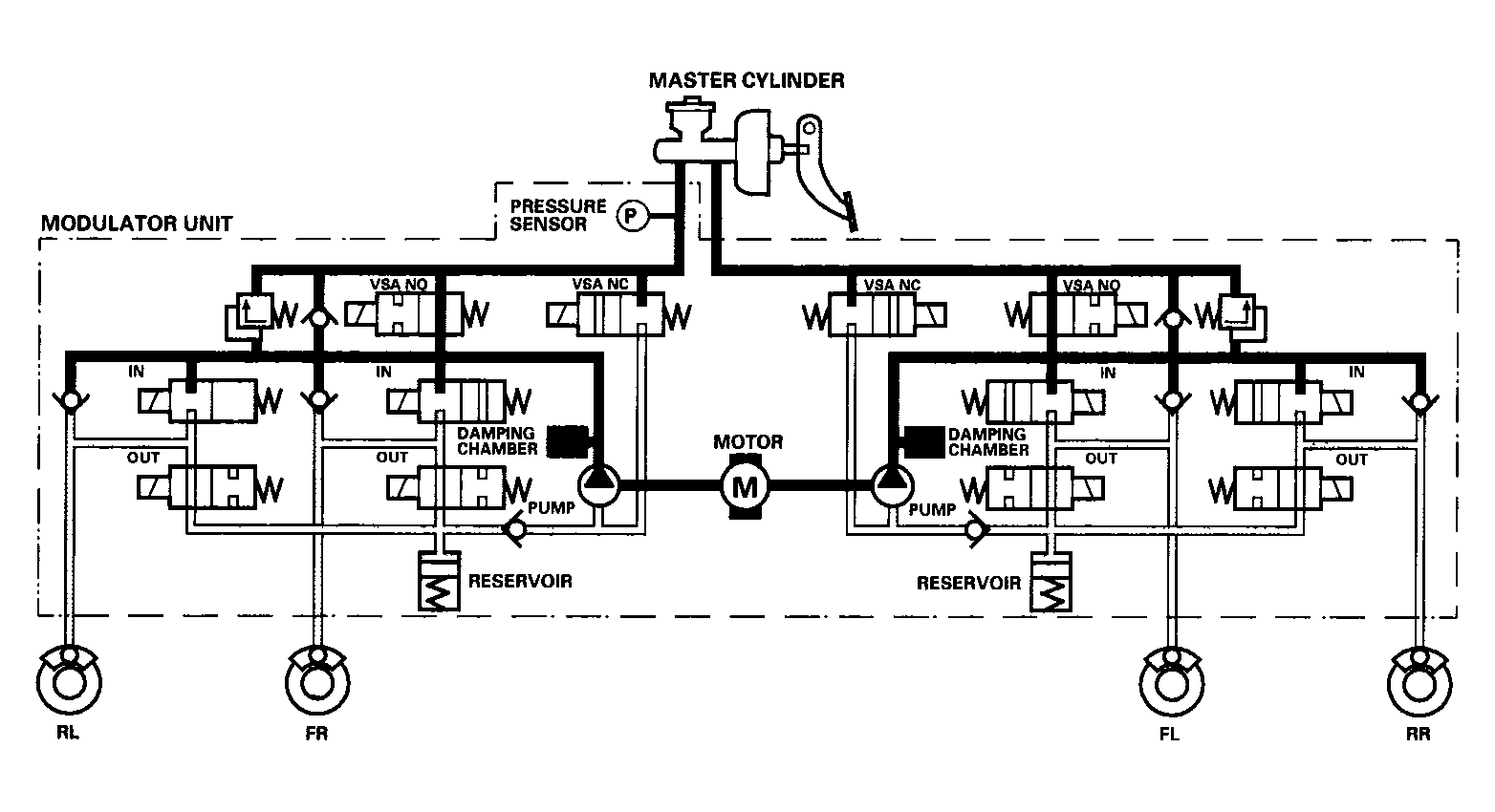

Fig 1: Identifying Fluid Flow Diagram - Pressure Reducing Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
