Pressure retaining mode

VSA NO valve closed, VSA NC valve open, inlet valve closed, outlet valve closed, pump motor ON. Front caliper fluid is retained by the inlet valve and outlet valve.

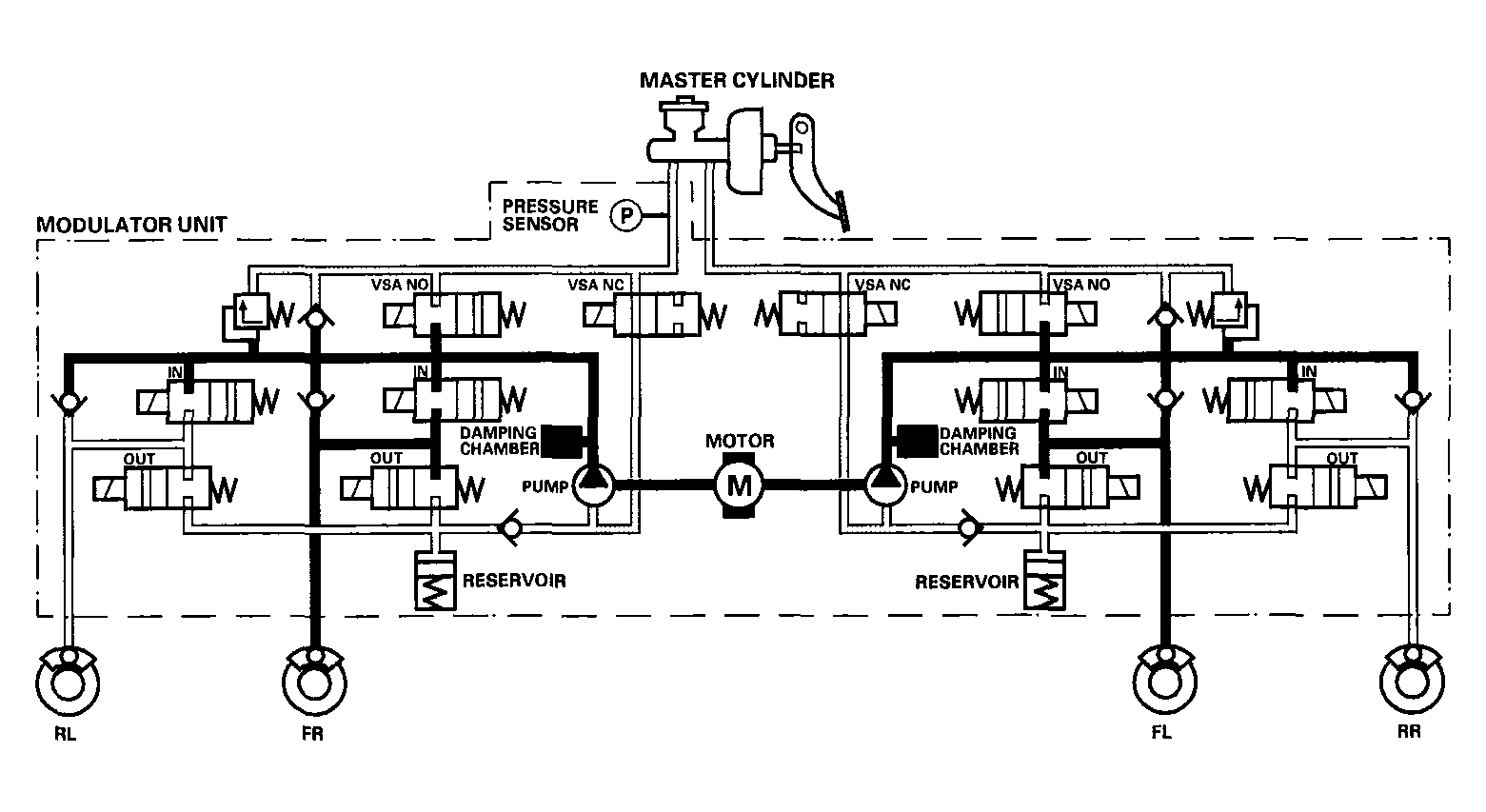

Fig 1: Identifying Fluid Flow Diagram - Pressure Retaining Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
