VSA Modulator-Control Unit Removal and Installation: Removal

Push the tab (A), and pull up the lock (B) of the VSA control unit 47P connector (C), and the connector disconnects itself.

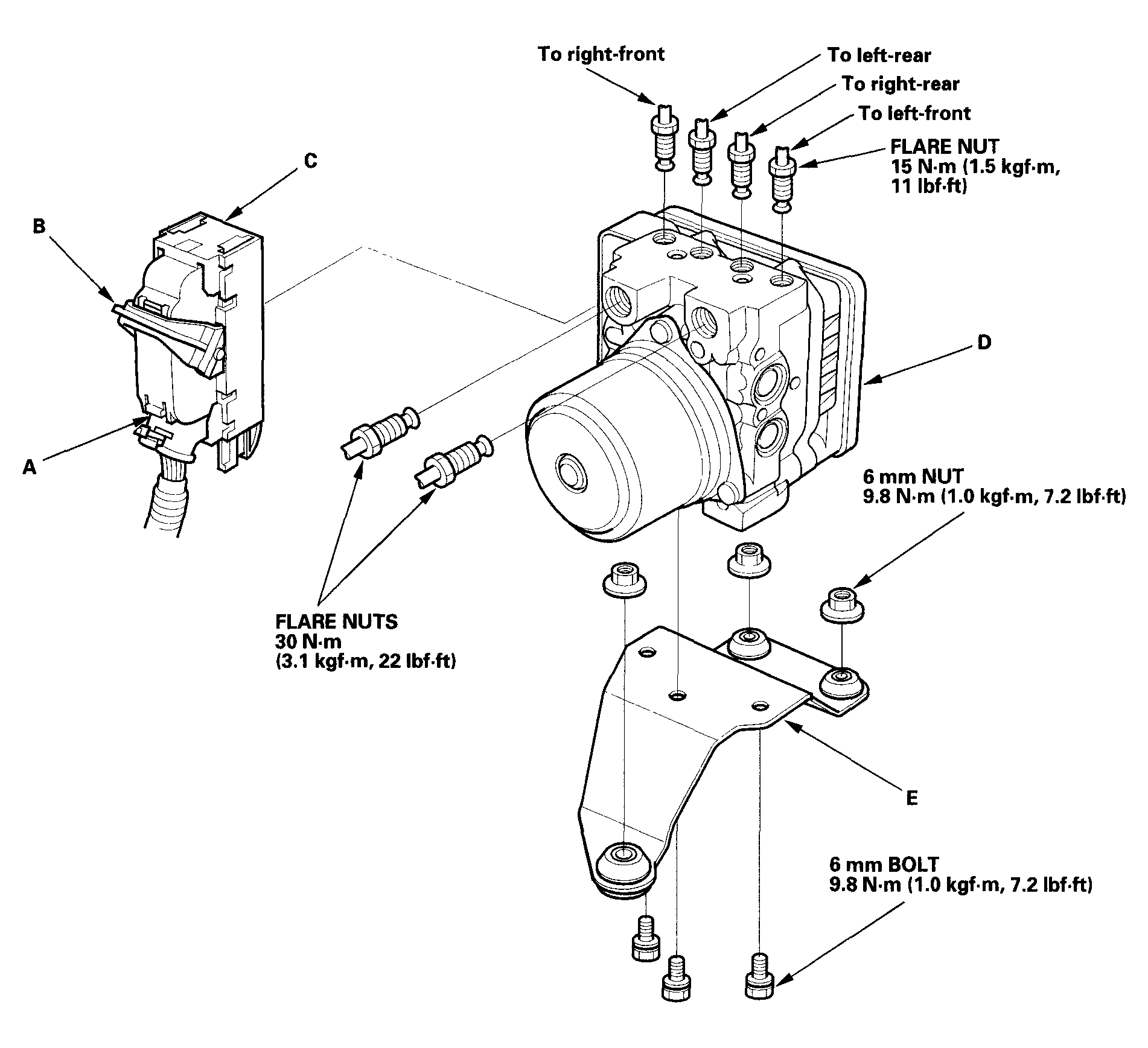

Fig 1: Removing/Installing VSA Modulator-Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines from the VSA modulator-control unit (D).
Remove the three 6 mm nuts, then remove the VSA modulator-control unit with bracket (E) from the body.
Remove the three 6 mm bolts, then remove the VSA modulator-control unit from the bracket.
