VSA Off Switch Test

Remove the switch panel (A).

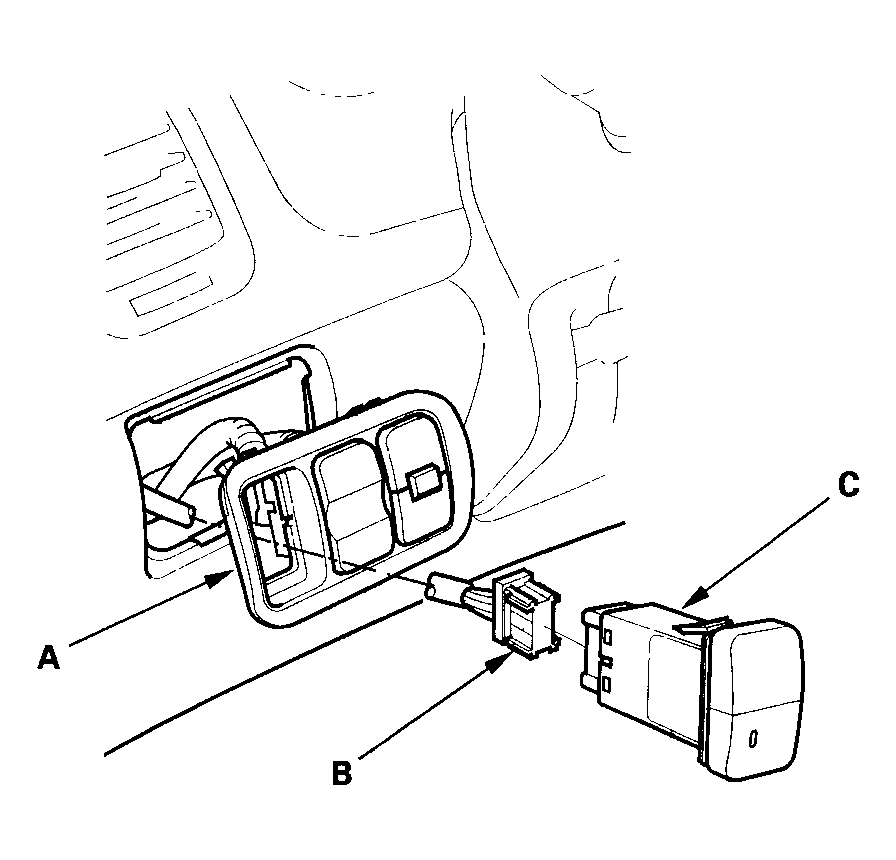

Fig 1: Removing Switch Panel (A)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the VSA OFF switch 13P connector (B).
Remove the VSA OFF switch (C) from the switch panel.
Check for continuity between the VSA OFF switch 13P connector terminal No. 9 and No. 12. There should be continuity when the switch is pressed, and no continuity when the switch is released.

Fig 2: Checking For Continuity Between VSA Off Switch 13P Connector Terminal No. 9 And No. 12
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the VSA OFF switch 13P connector terminal No. 1 and No. 5. There should be continuity at all times.

Fig 3: Checking For Continuity Between VSA Off Switch 13P Connector Terminal No. 1 And No. 5
Courtesy of AMERICAN HONDA MOTOR CO., INC.
