Wheel Sensor Replacement

NOTE: Install the sensors carefully to avoid twisting the wires.

Front:

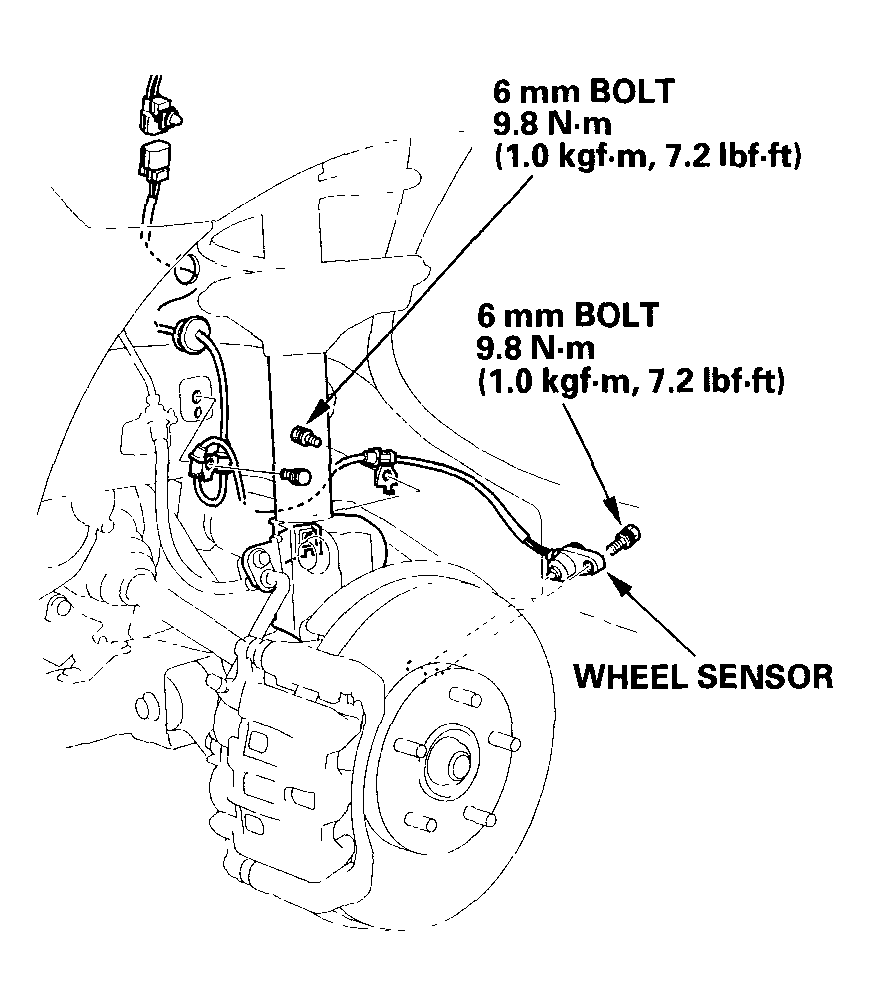

Fig 1: Installing Front Sensors

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear:

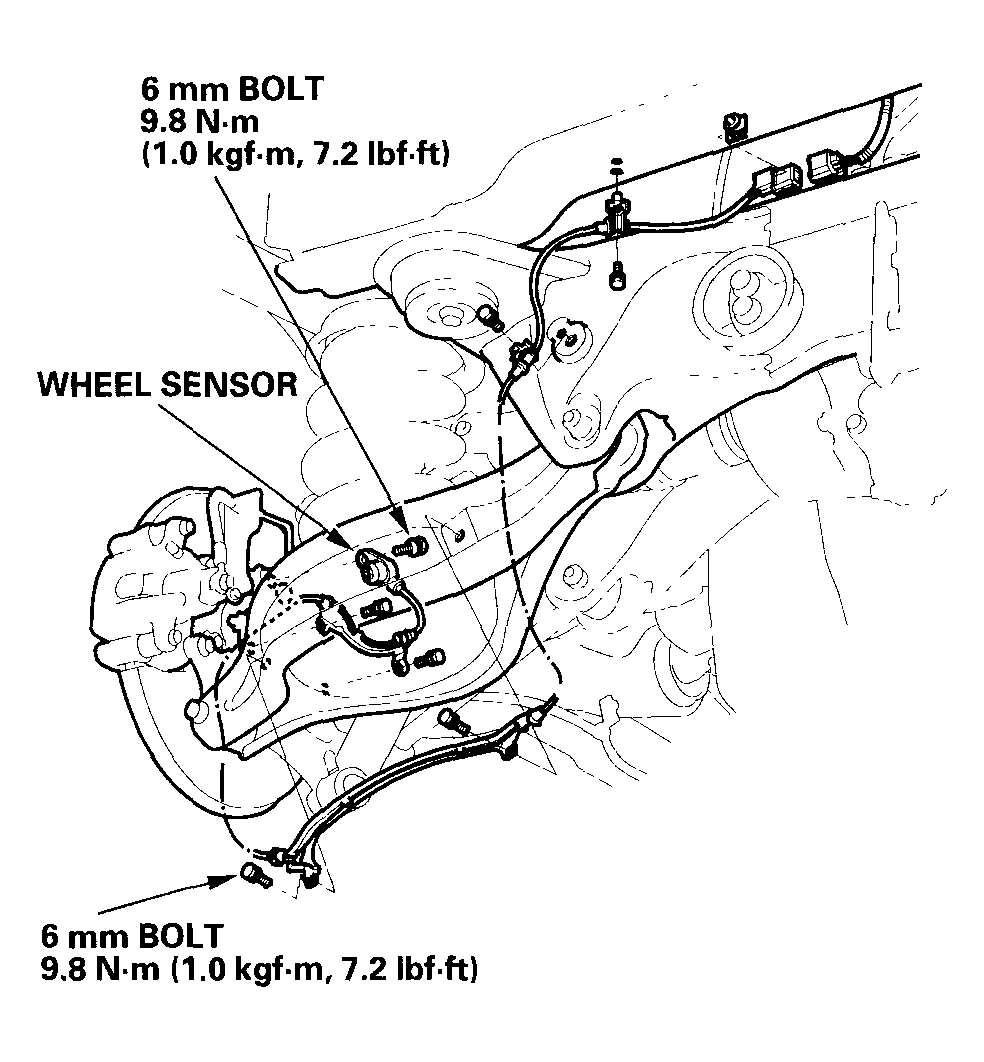

Fig 2: Installing Rear Sensors

Courtesy of AMERICAN HONDA MOTOR CO., INC.
