Pilot EX
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Accessory Power Sockets
›
Circuit Diagram
Circuit Diagram

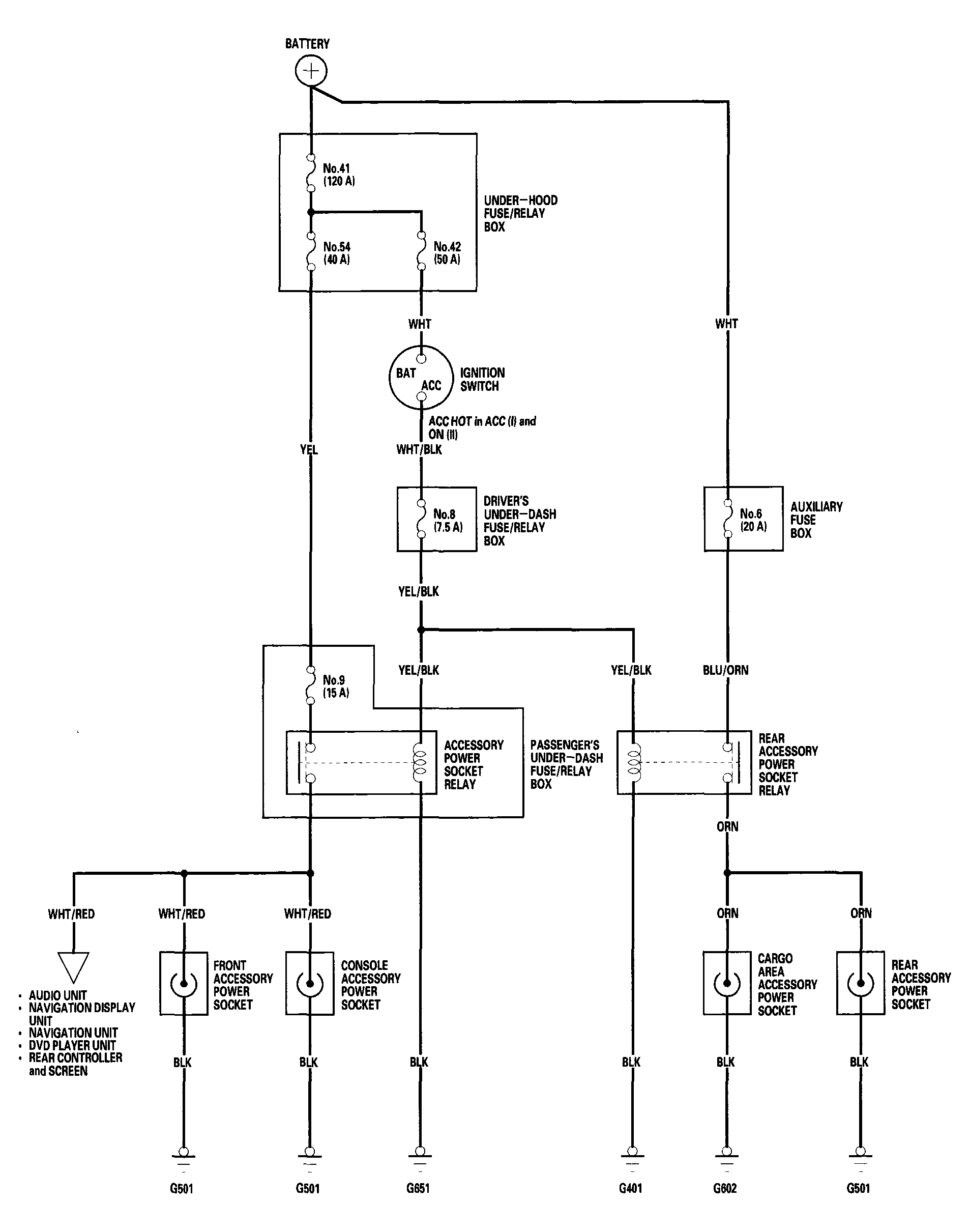

Fig 1: Accessory Power Sockets Circuit Diagram
