CD Changer Connector End View
CD Changer Connector End View

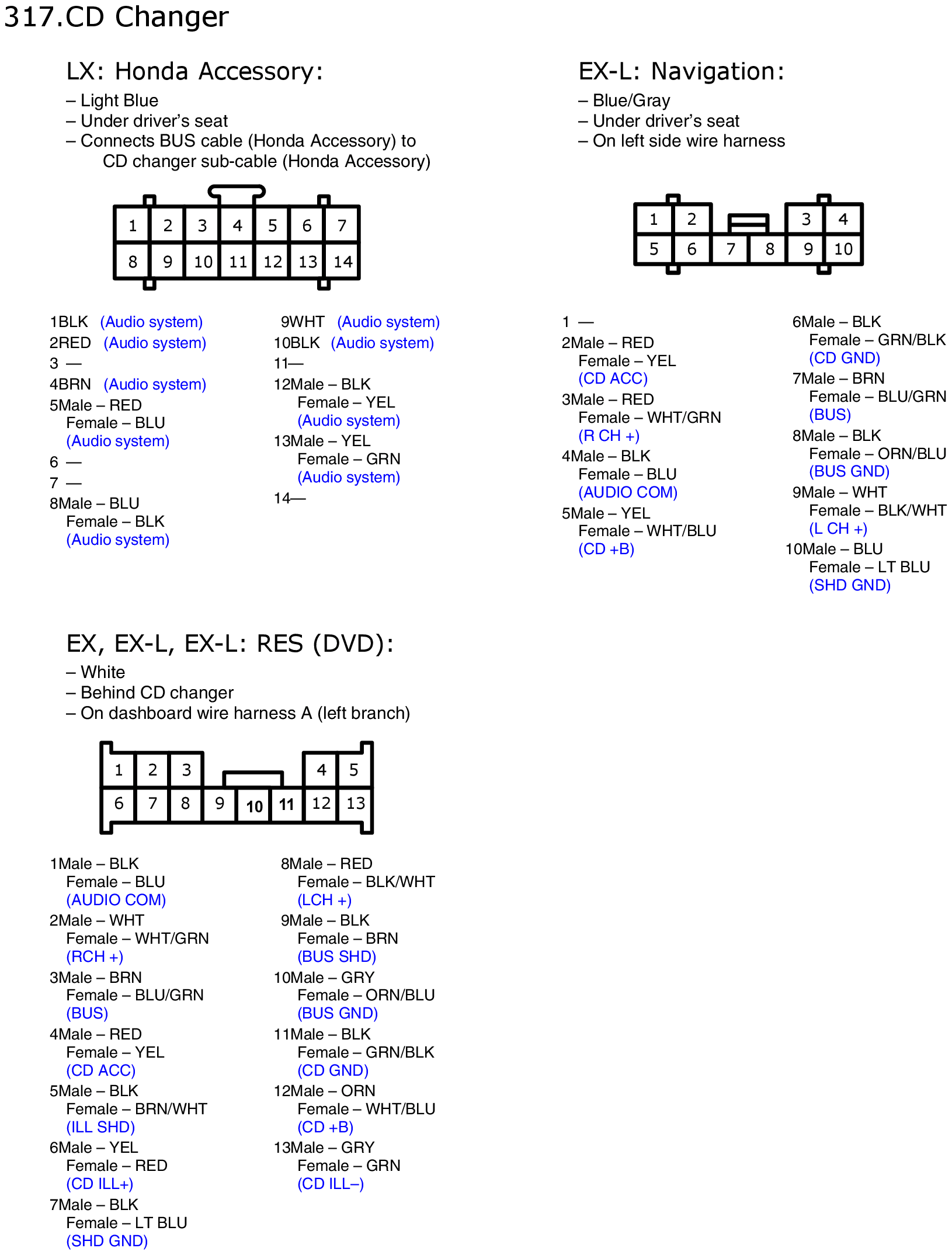

Fig 1: CD Changer Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
