Removal and Installation: Removal

Make sure you have the anti-theft codes for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
Disconnect the negative battery cable, then disconnect the positive cable, and wait at least 3 minutes.
Driver's fuse box: Remove the left kick panel and dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Passenger's fuse box: Remove the right kick panel and glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
Remove the mounting nut or bolt, and pull the driver's under-dash fuse/relay box (A) or passenger's under-dash fuse/relay box (B) away from the body.

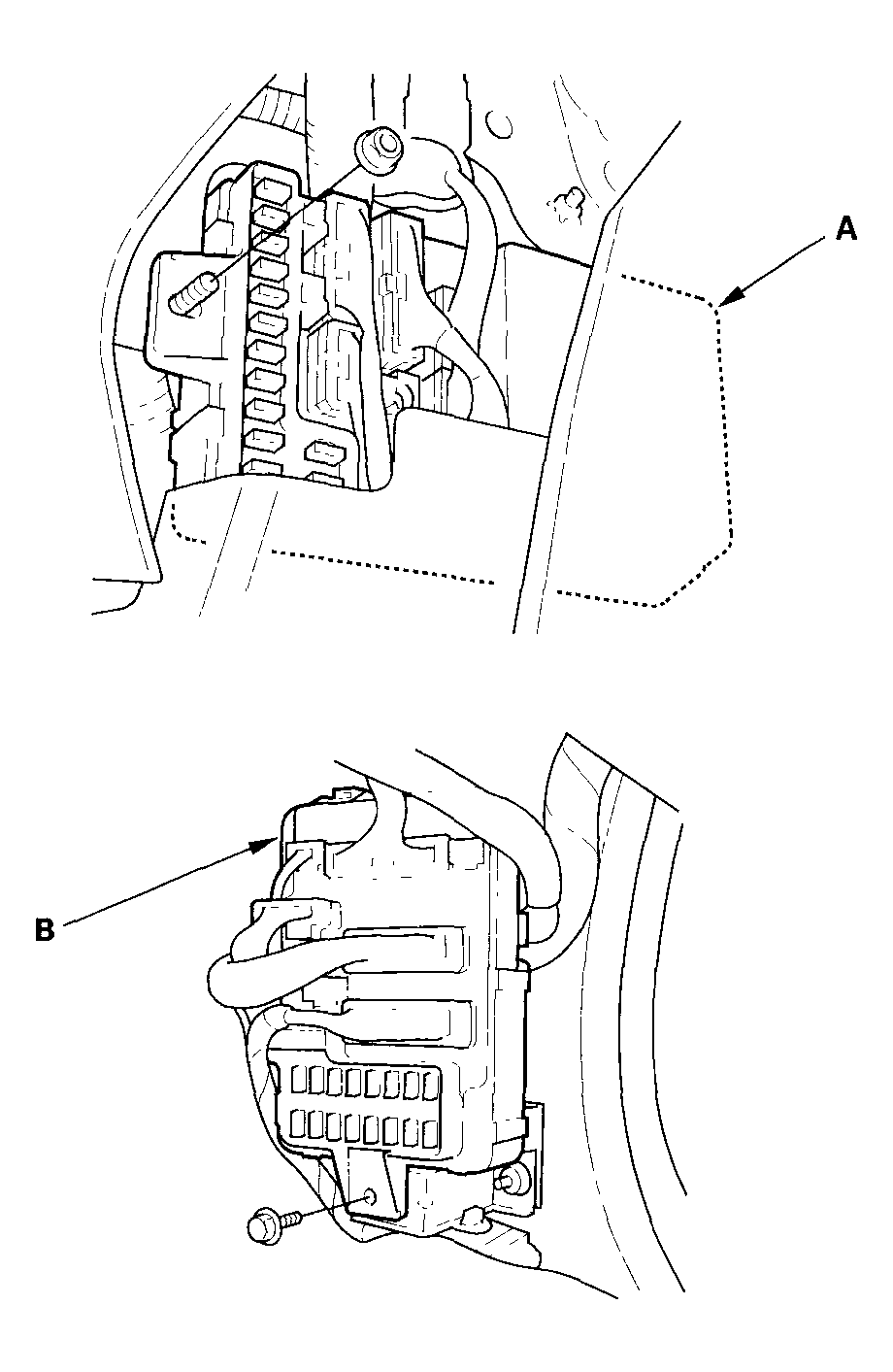

Fig 1: Removing Mounting Nut Or Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the driver's or passenger's under-dash fuse/relay box connectors, and remove the driver's or passenger's under-dash fuse/relay box.
NOTE: The dashboard wire harness A (driver's under-dash fuse/relay box connector B) 2P connector for SRS is a spring-loaded lock type (see SPRING-LOADED LOCK CONNECTOR ).
