Drive Belt Auto-tensioner Replacement

Remove the drive belt (see DRIVE BELT INSPECTION ).
Remove the splash shield (see step 28 ENGINE REMOVAL ).
Remove the auto-tensioner.

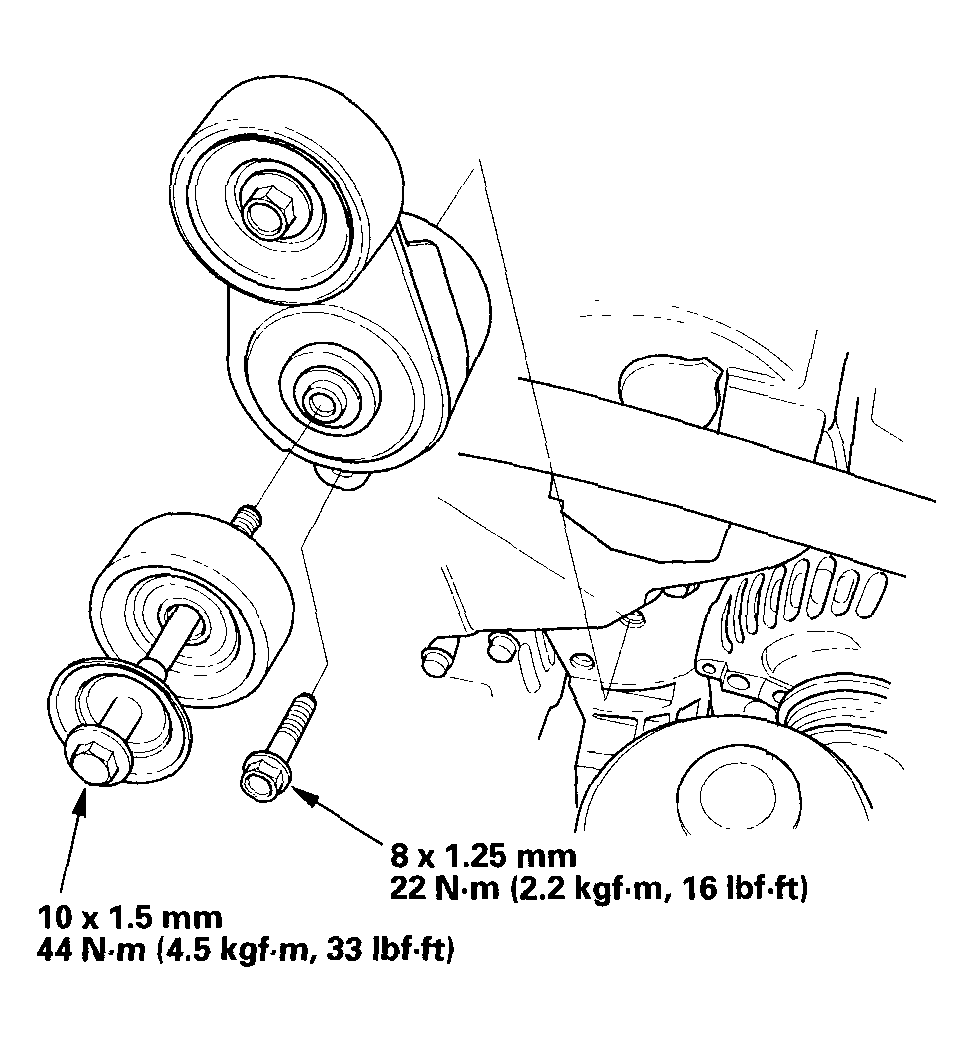

Fig 1: Removing Auto-Tensioner
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the auto-tensioner in the reverse order of removal.
