Component Location Index

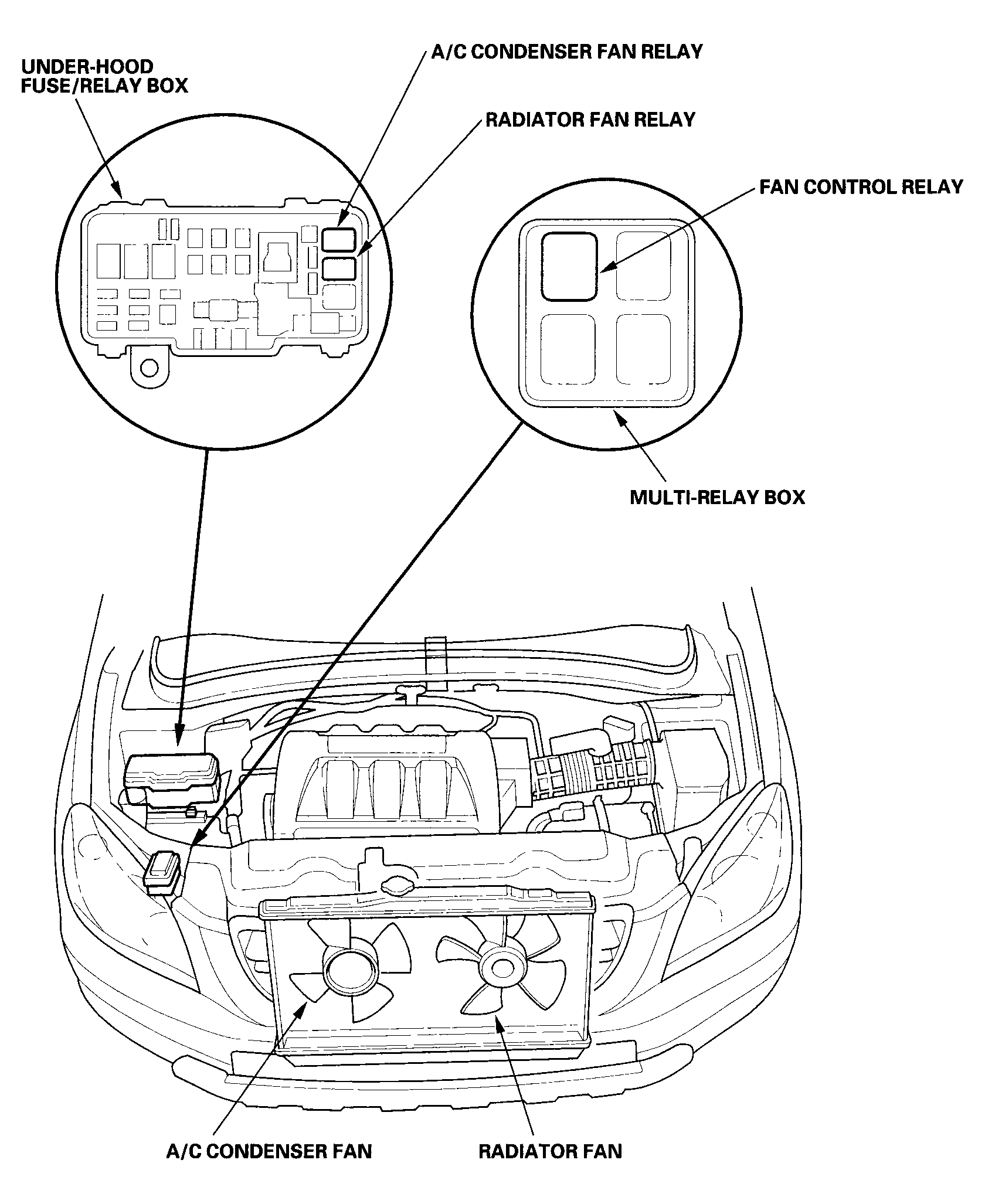

Fig 1: Identifying Fan Control Components Location
G04545828Courtesy of AMERICAN HONDA MOTOR CO., INC.
