Component Location Index

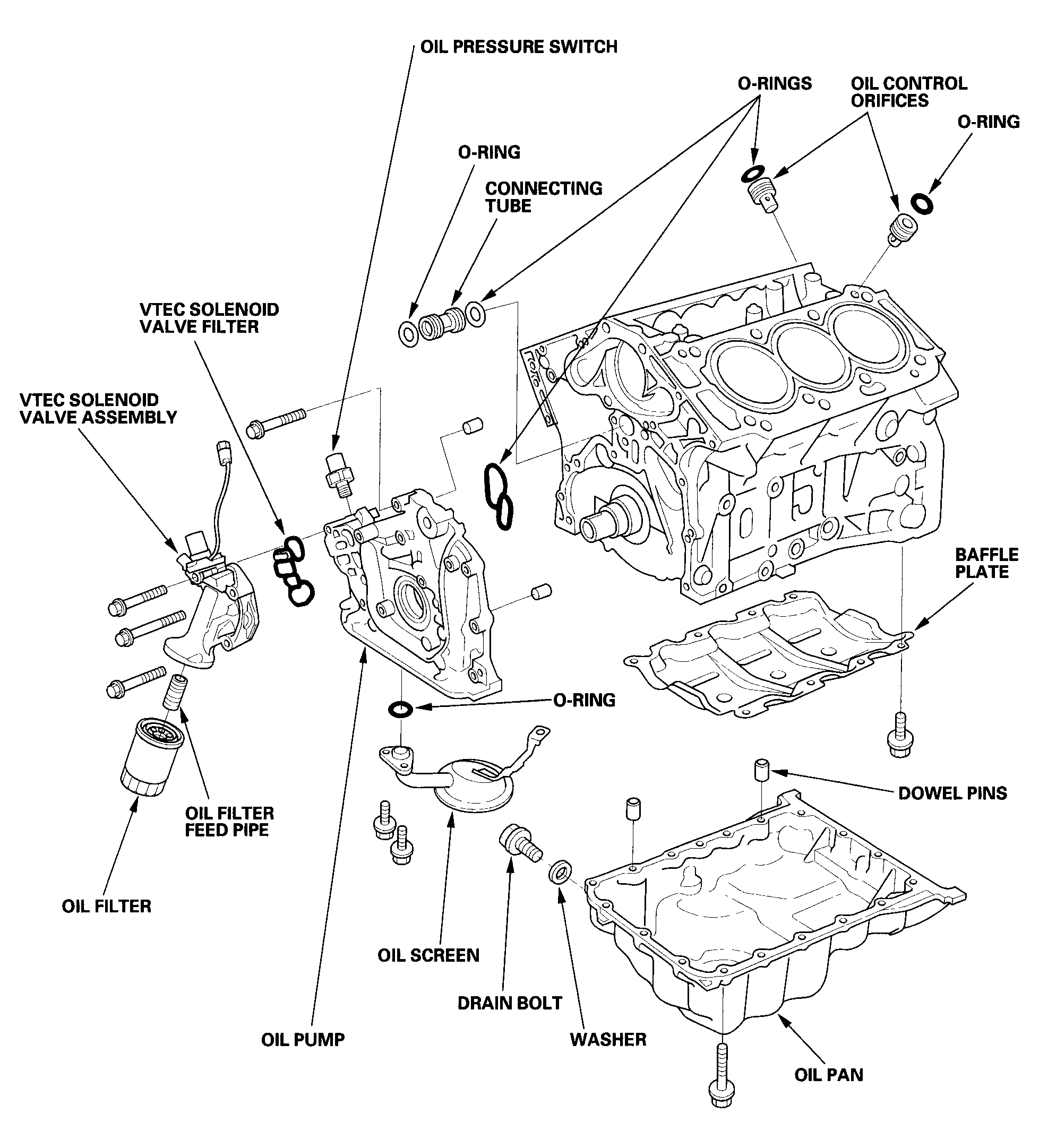

Fig 1: Identifying Engine Lubrication Components Location
G04545773Courtesy of AMERICAN HONDA MOTOR CO., INC.
