Engine Mount Replacement

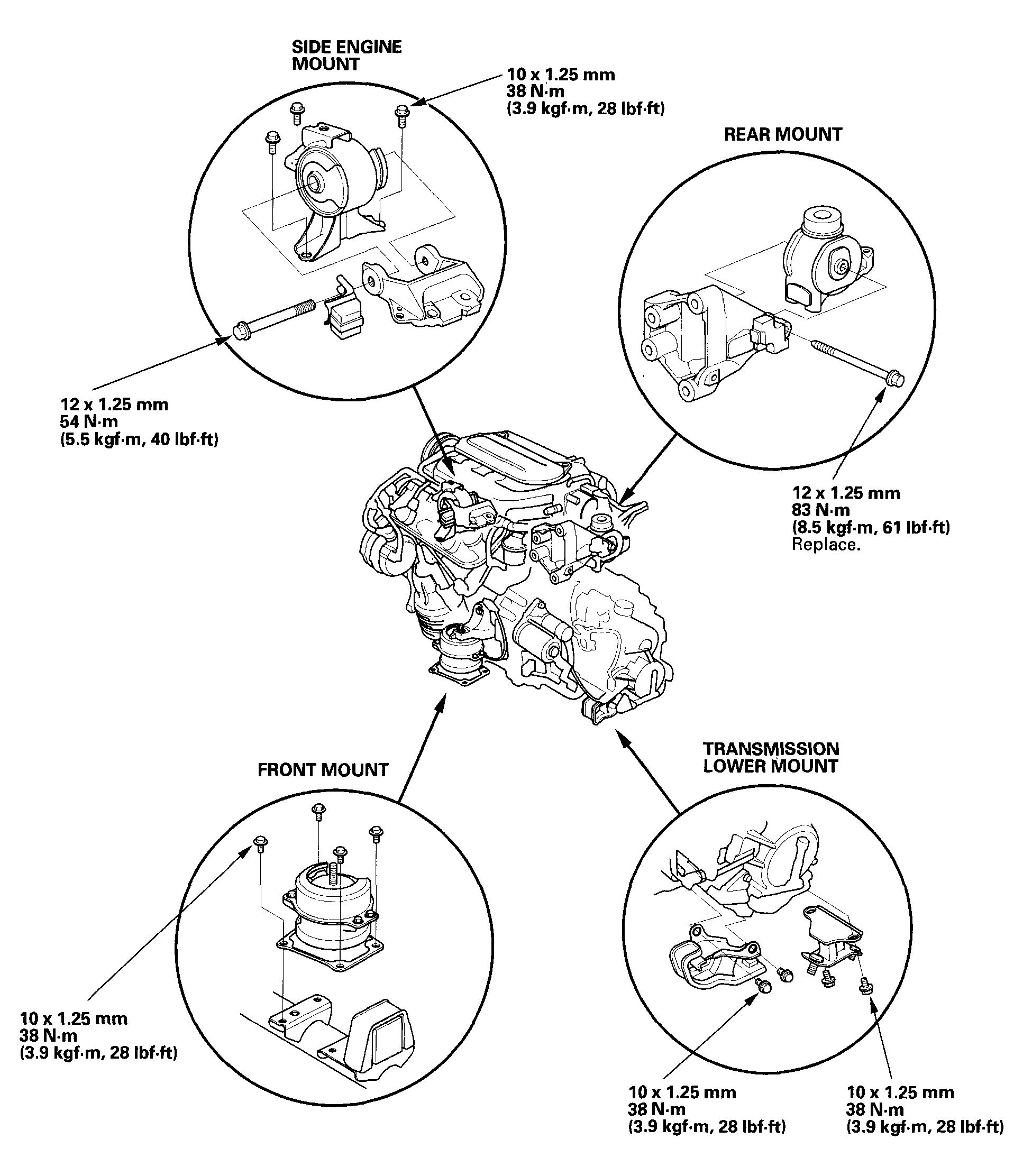

Fig 1: Replacing Engine Mount
G04545554Courtesy of AMERICAN HONDA MOTOR CO., INC.
