Accelerator Pedal Removal/Installation

  1. Remove the throttle cable from the accelerator pedal (see step  4 ).
  2. Remove the accelerator pedal bracket (A).

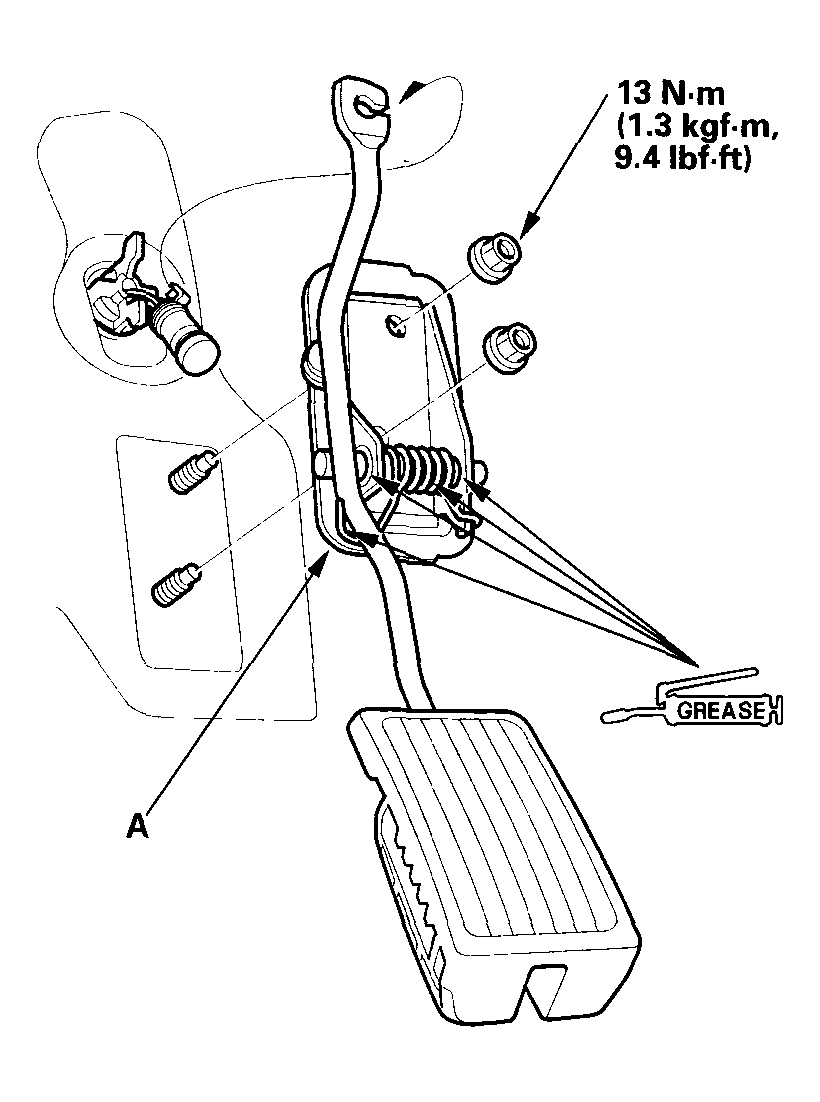

    Fig 1: Removing Accelerator Pedal Bracket
    G04546209Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the accelerator pedal bracket in the reverse order of removal.
