Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
Circuit Diagram
Circuit Diagram

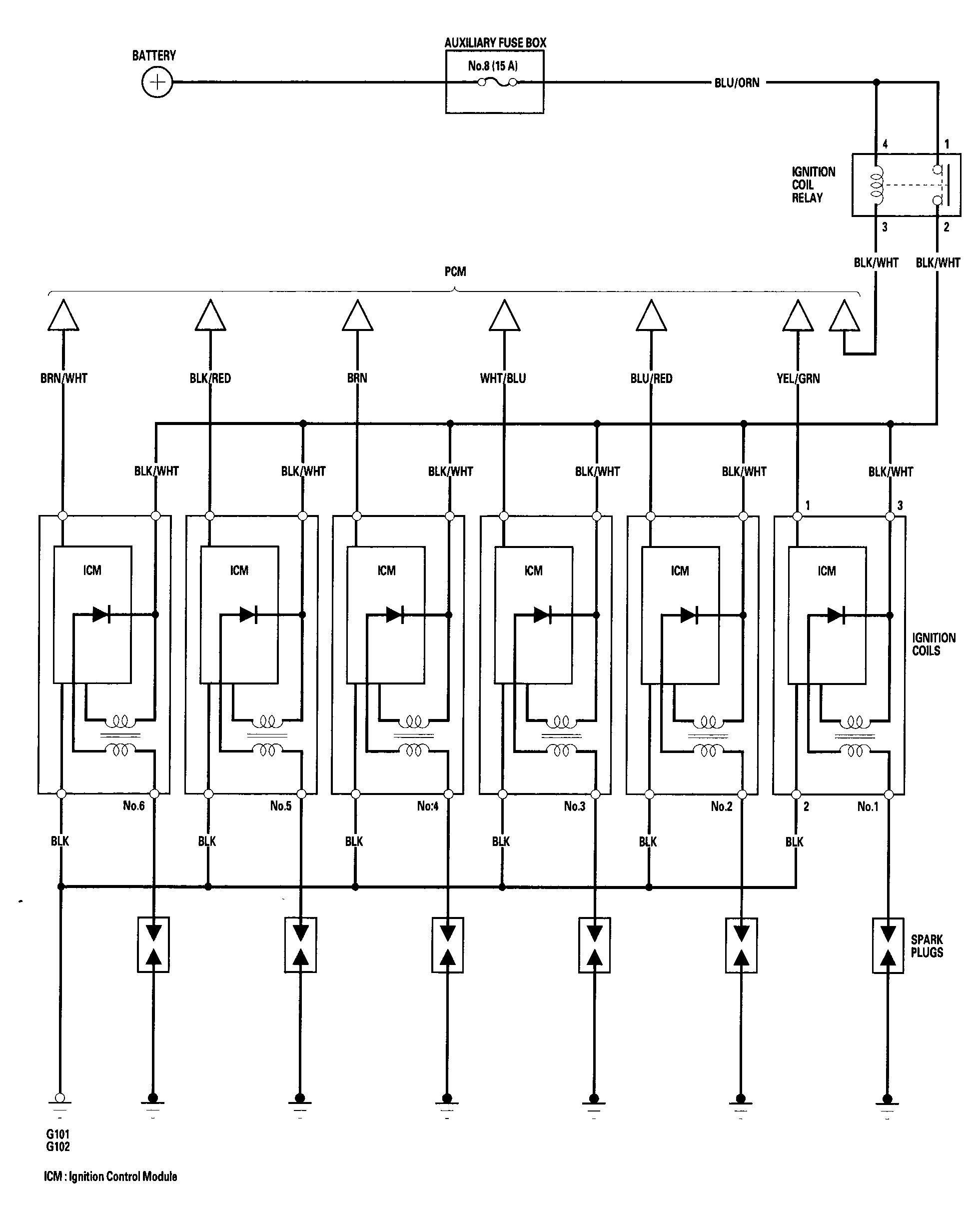

Fig 1: Ignition System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
