PCM Electrical Connections
PCM Electrical Connections

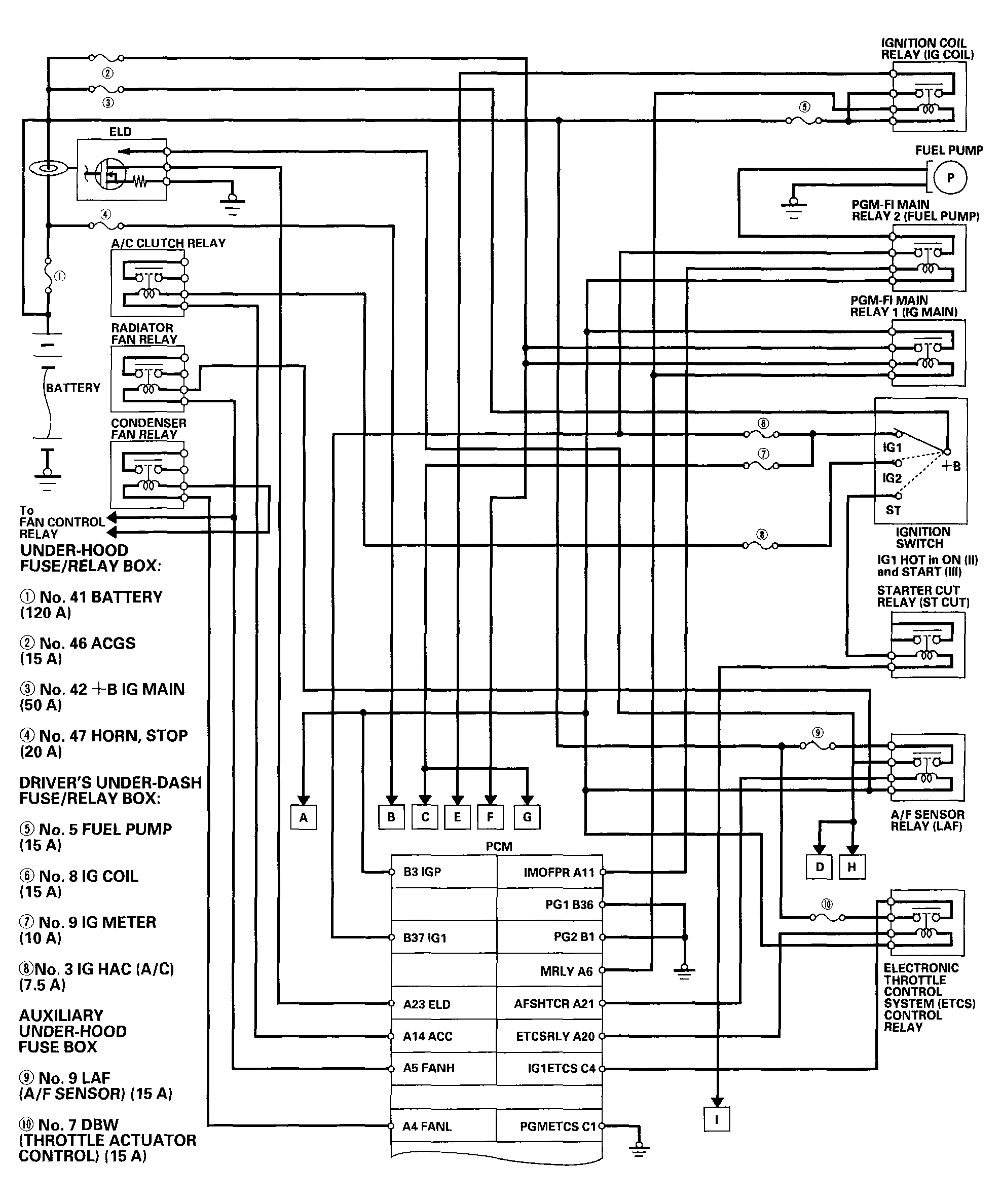

Fig 1: PCM Electrical Connections Diagram (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

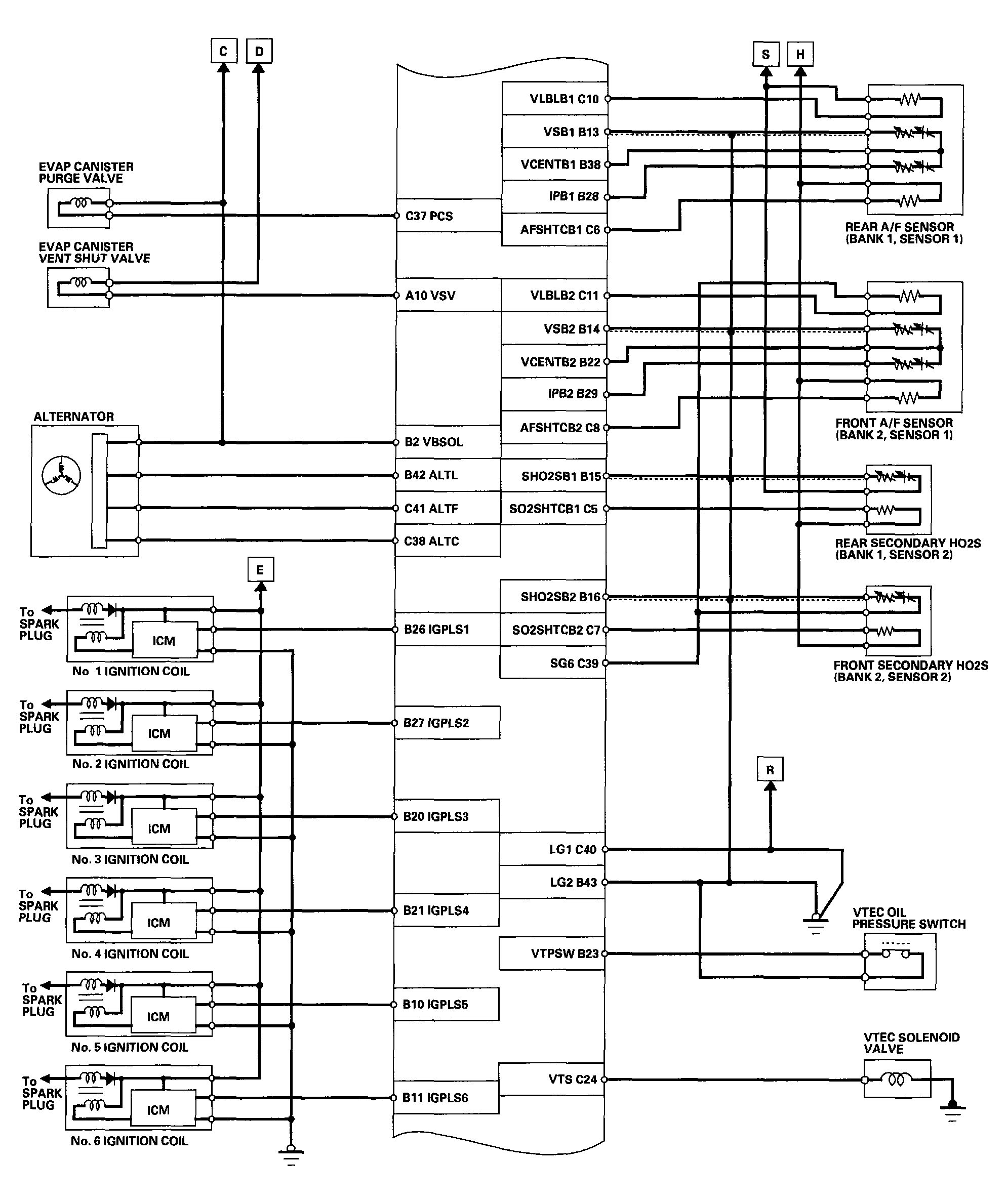

Fig 2: PCM Electrical Connections Diagram (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

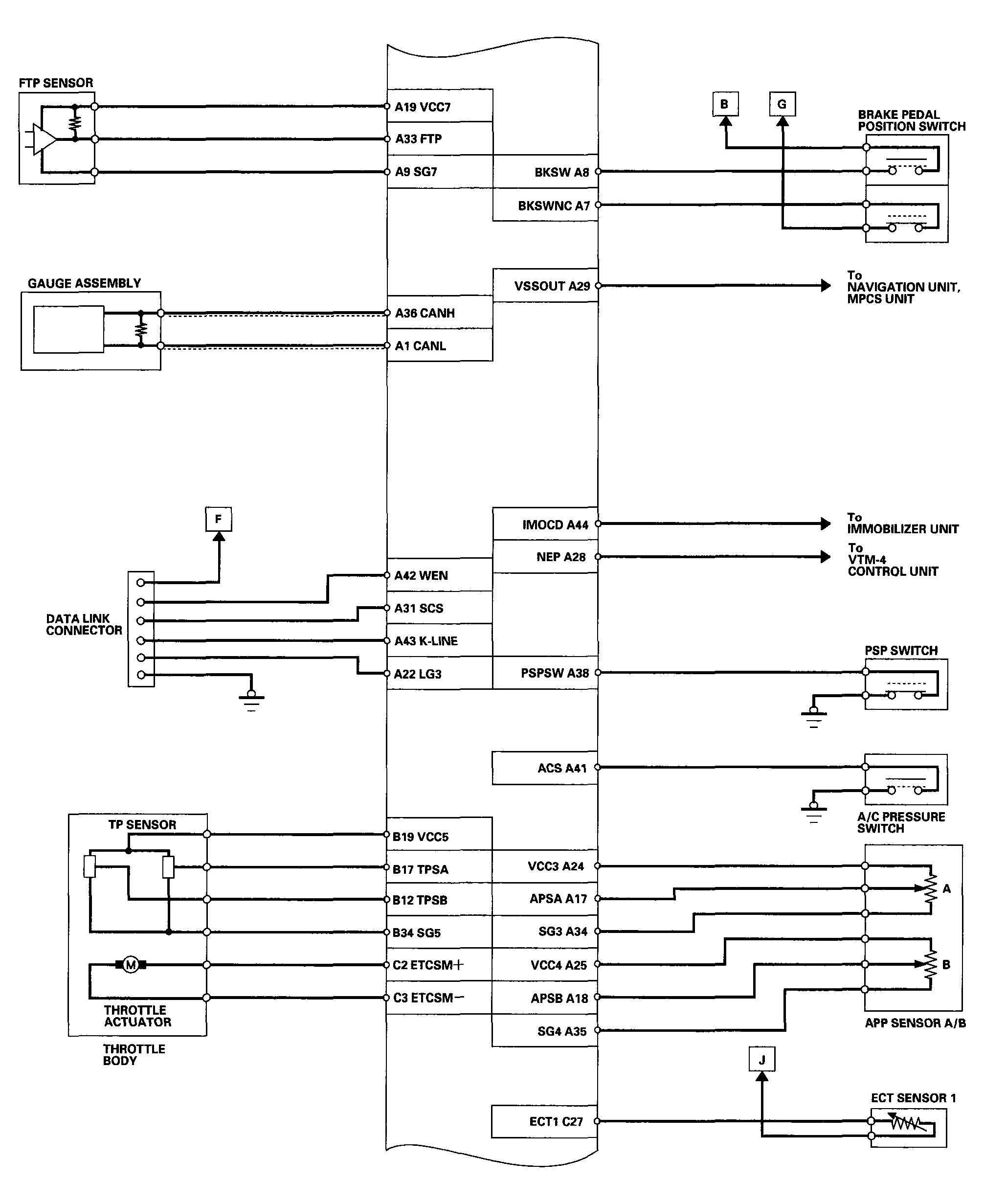

Fig 3: PCM Electrical Connections Diagram (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

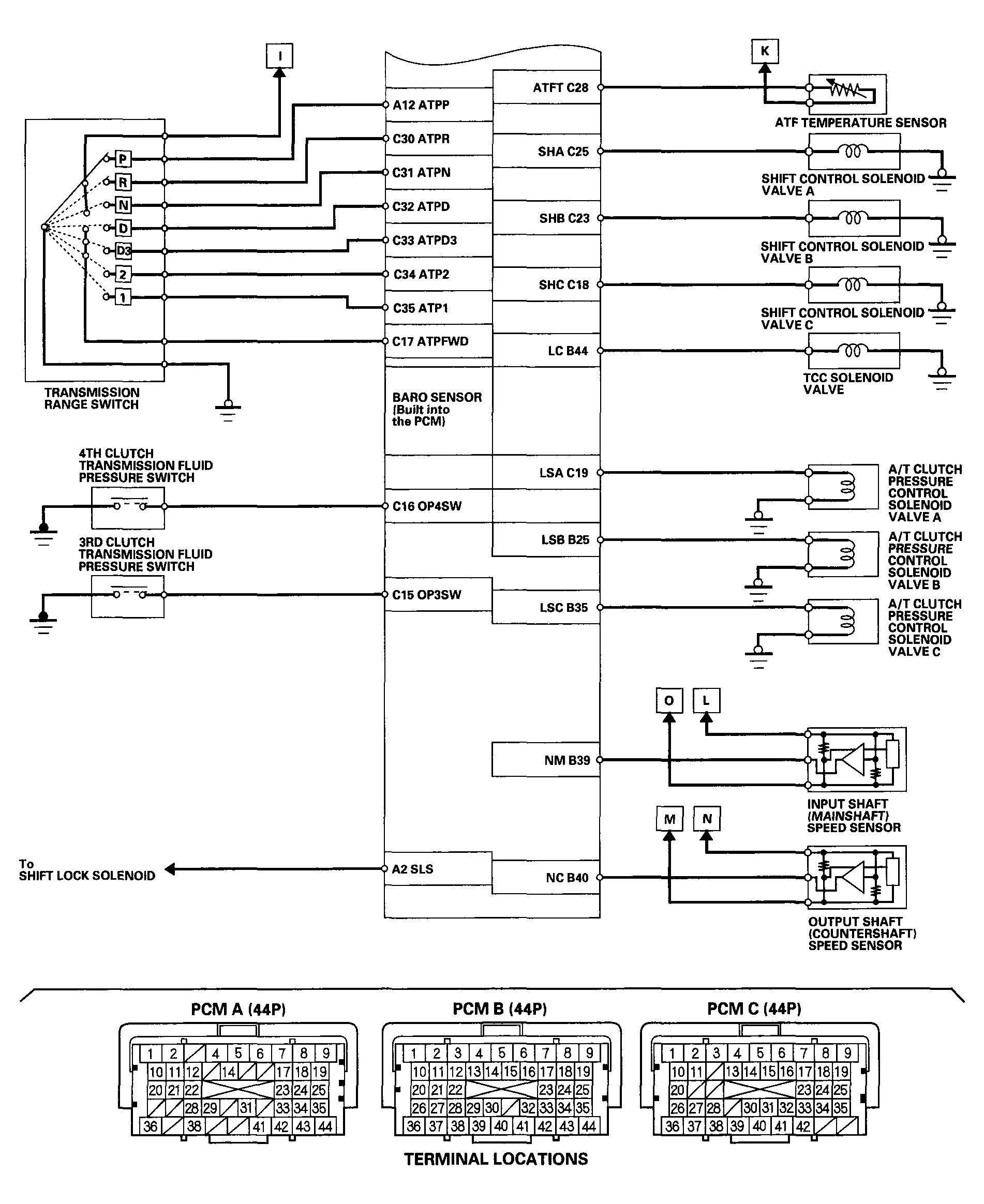

Fig 4: PCM Electrical Connections Diagram (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

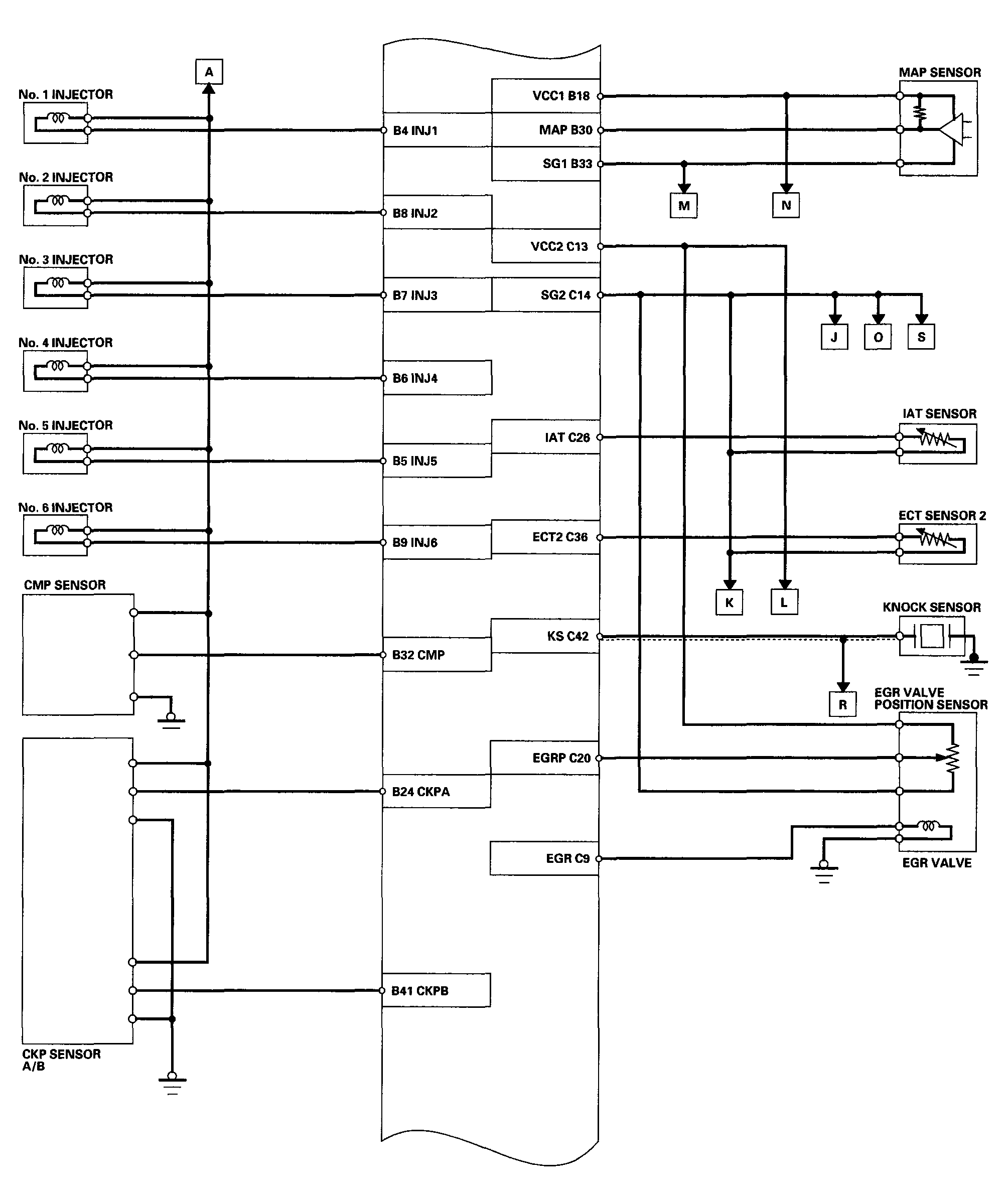

Fig 5: PCM Electrical Connections Diagram (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
