Crankshaft Position (CKP) Sensor

This CKP sensor detects crankshaft speed and is used by the PCM to determine ignition timing and timing for fuel injection of each cylinder as well as detecting engine misfire.

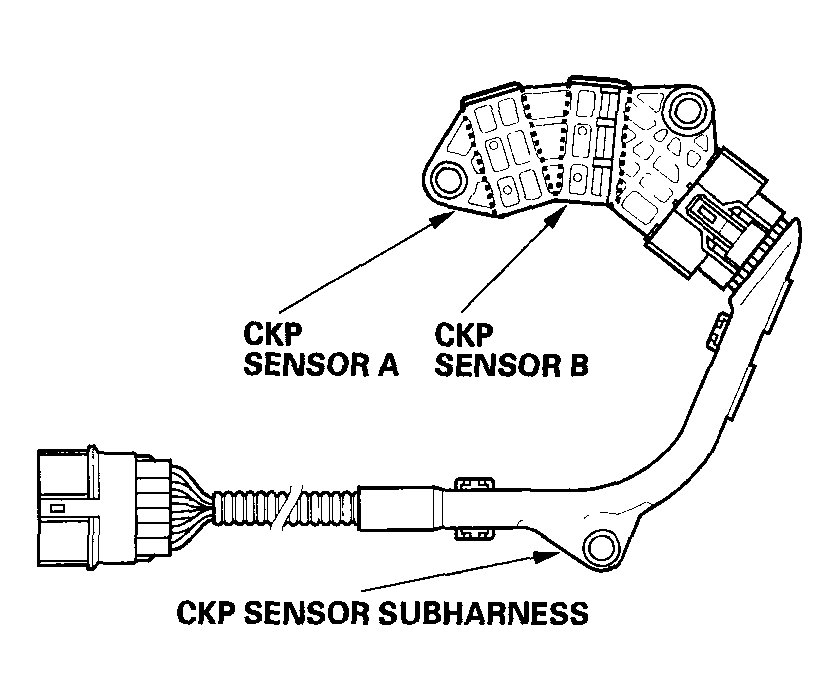

Fig 1: Identifying Crankshaft Position Sensor
G04545852Courtesy of AMERICAN HONDA MOTOR CO., INC.
