Rear Bank (Bank 1)

  1. Remove the intake manifold cover (see step 1 on IGNITION COIL REMOVAL/INSTALLATION ).
  2. Disconnect the rear A/F sensor 8P Connector (A), then remove the rear A/F sensor (B).

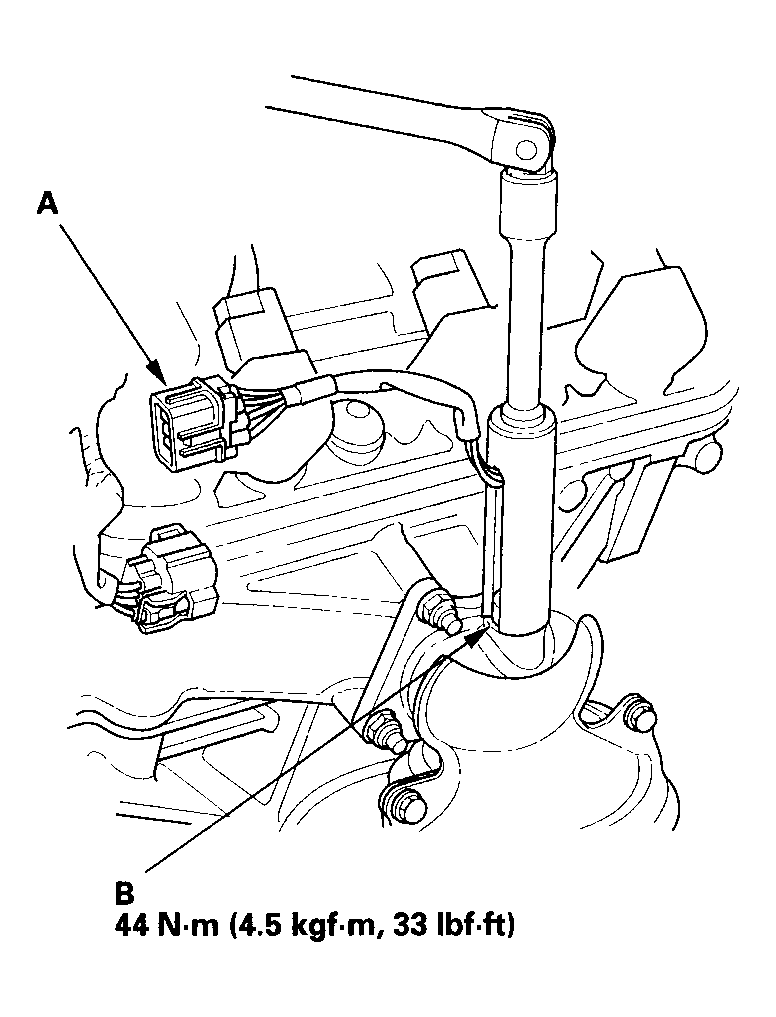

    Fig 1: Disconnecting Rear A/F Sensor 8P Connector
    G04546046Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the rear A/F sensor in the reverse order of removal.
