VTEC Solenoid Valve Replacement

Disconnect the VTEC solenoid valve 1P connector (A).

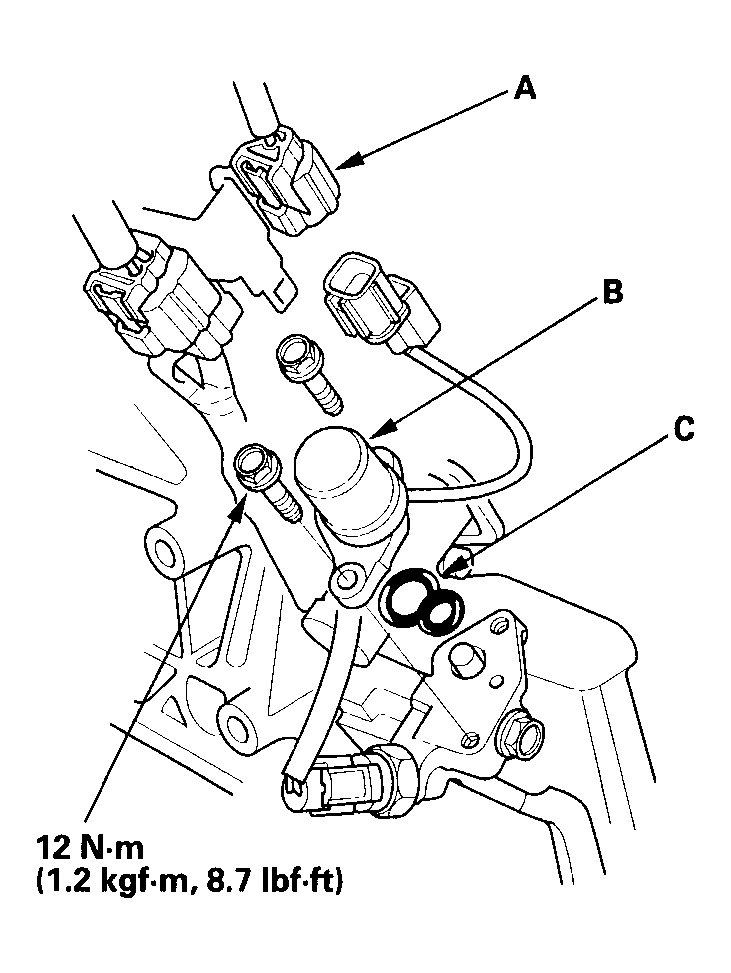

Fig 1: Disconnecting VTEC Solenoid Valve 1P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the VTEC solenoid valve (B).
Install the parts in the reverse order of removal with a new O-ring (C).
