ABS Modulator-Control Unit (LX, EX) Connector End View
ABS Modulator-Control Unit (LX, EX) Connector End View

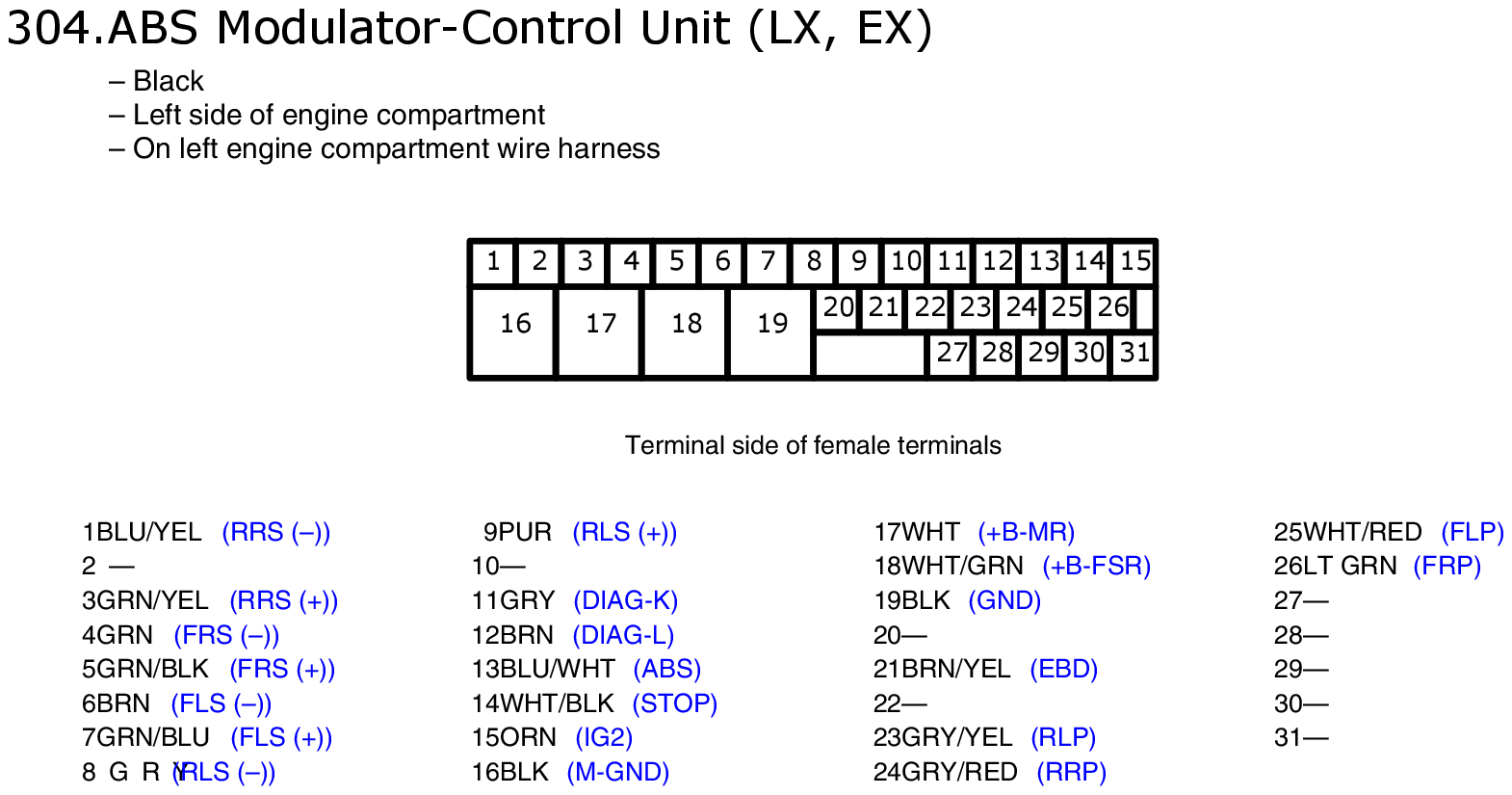

Fig 1: ABS Modulator-Control Unit (LX, EX) Connector End View
