Driver's Under-Dash Fuse/Relay Box Connector End View
Driver's Under-Dash Fuse/Relay Box Connector End View

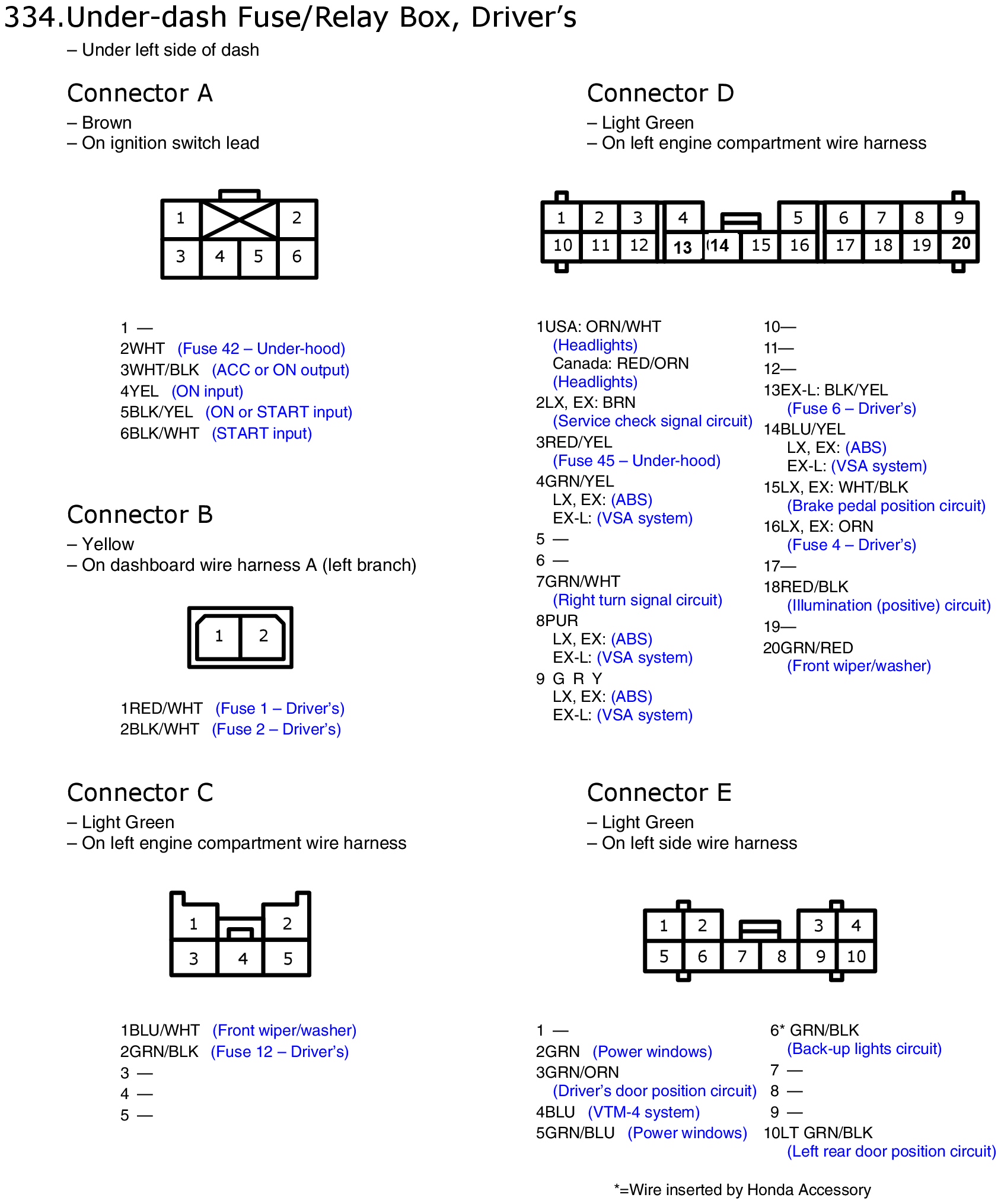

Fig 1: Driver's Under-Dash Fuse/Relay Box Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
