Interior Light Switch Connector End View
Interior Light Switch Connector End View

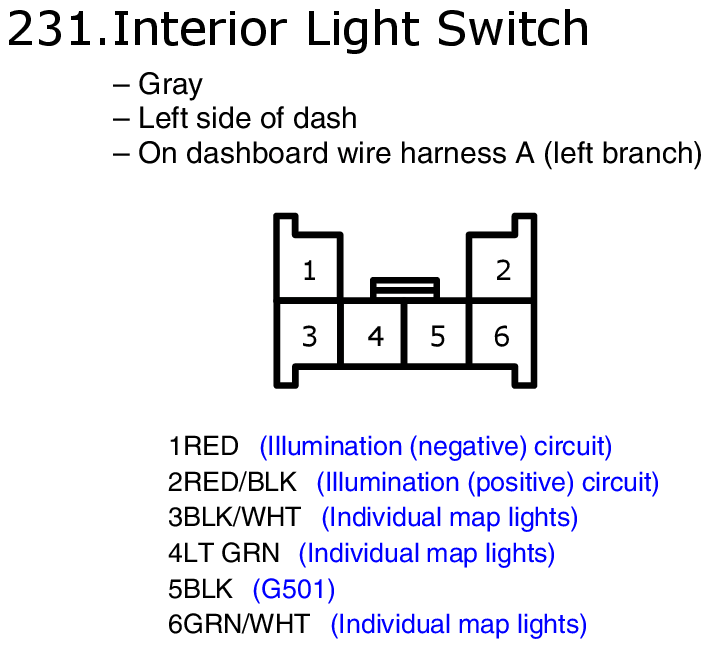

Fig 1: Interior Light Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
