Left Middle Individual Map Light Connector End View
Left Middle Individual Map Light Connector End View

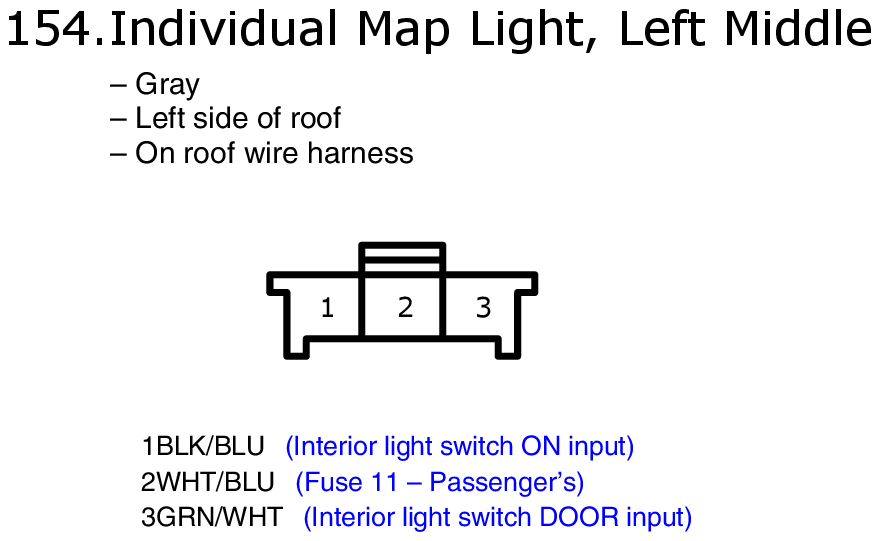

Fig 1: Left Middle Individual Map Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
