Left Rear TPMS Initiator Connector End View
Left Rear TPMS Initiator Connector End View

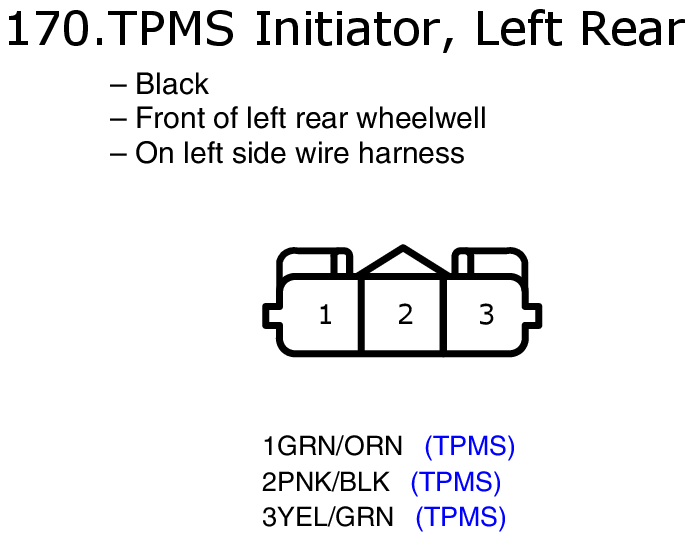

Fig 1: Left Rear TPMS Initiator Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
