Park Pin Switch Connector End View
Park Pin Switch Connector End View

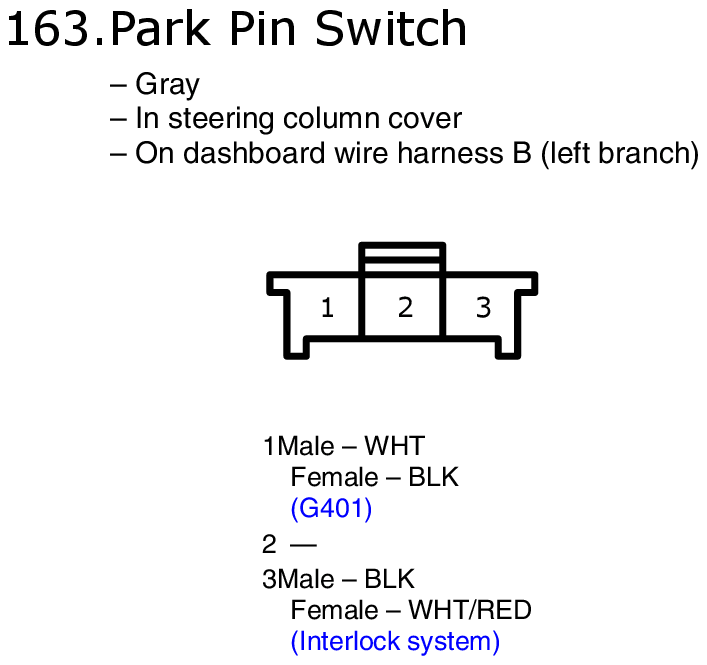

Fig 1: Park Pin Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
