Power Mirror Switch Connector End View
Power Mirror Switch Connector End View

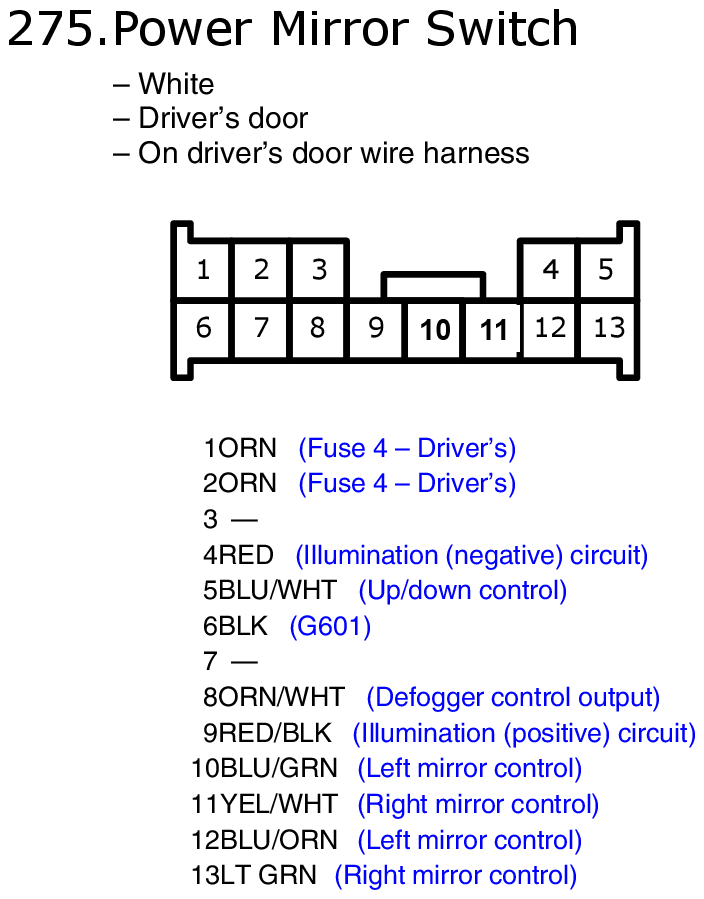

Fig 1: Power Mirror Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
