Right Taillight Assembly Connector End View
Right Taillight Assembly Connector End View

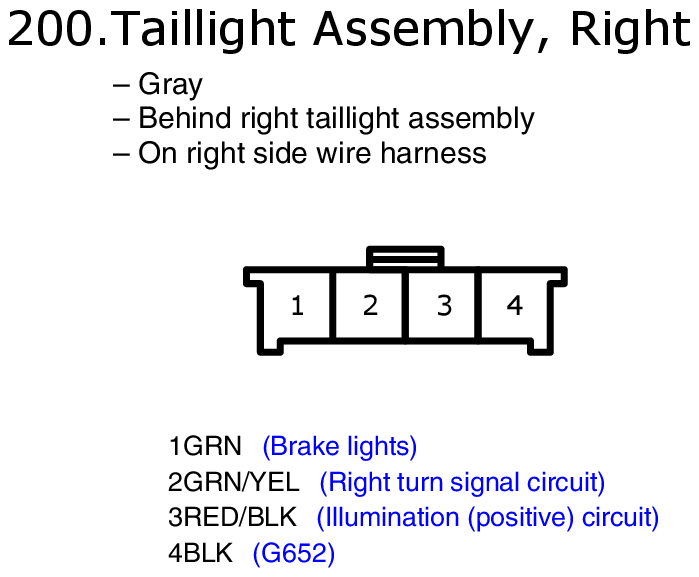

Fig 1: Right Taillight Assembly Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
