Security Indicator (EX, EX-L) Connector End View
Security Indicator (EX, EX-L) Connector End View

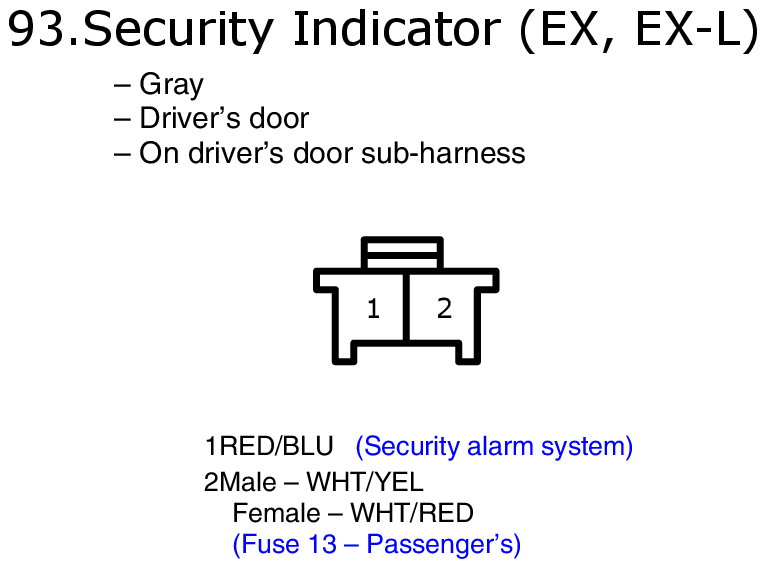

Fig 1: Security Indicator (EX, EX-L) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
