Tailgate Key Cylinder Switch Connector End View
Tailgate Key Cylinder Switch Connector End View

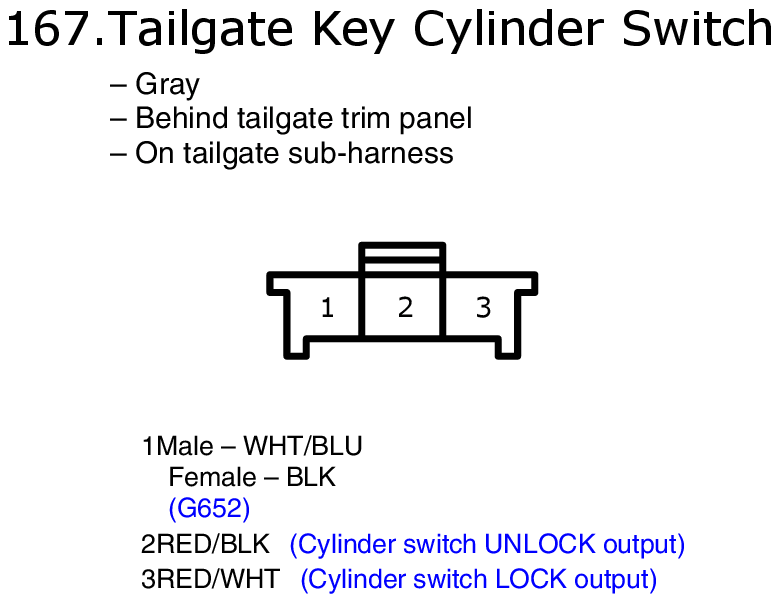

Fig 1: Tailgate Key Cylinder Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
