Trailer Lighting Connector End View
Trailer Lighting Connector End View

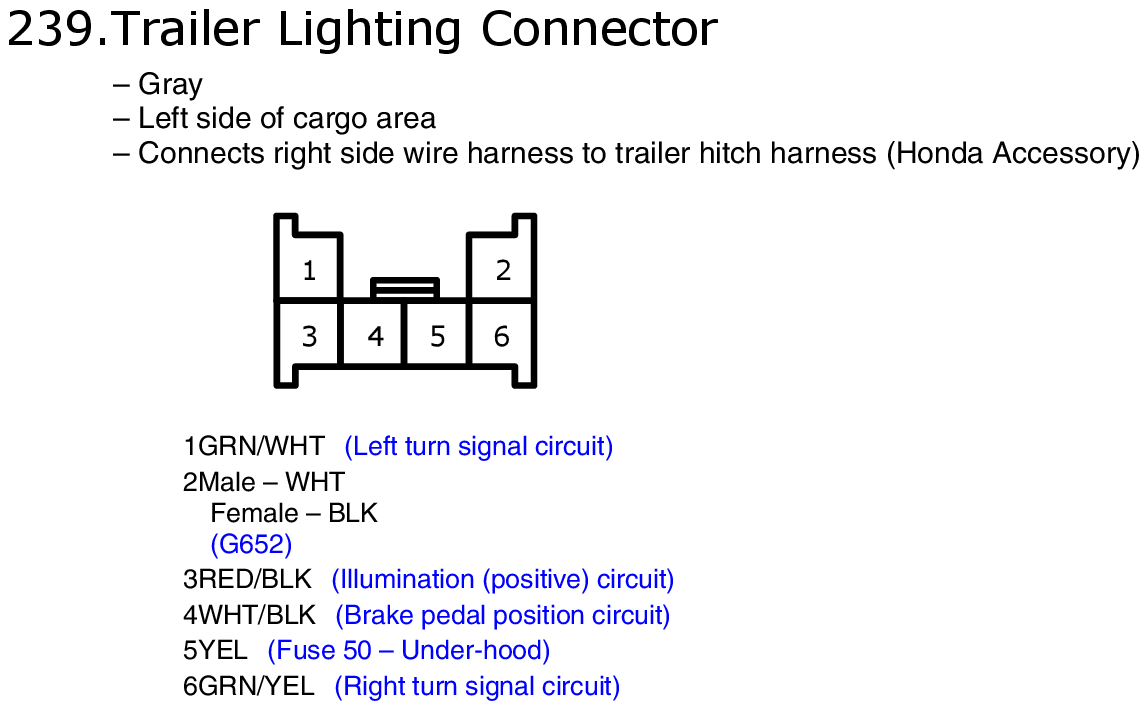

Fig 1: Trailer Lighting Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
