VTM-4 Lock Switch Connector End View
VTM-4 Lock Switch Connector End View

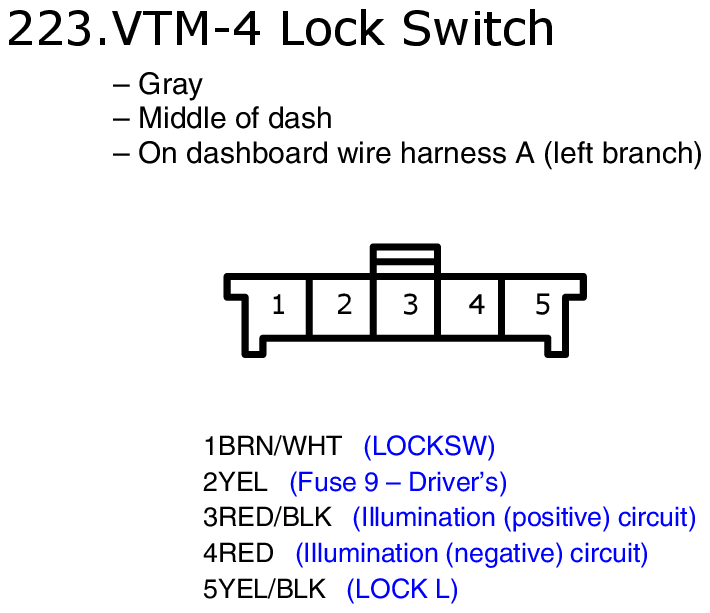

Fig 1: VTM-4 Lock Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
