System Description
›
Clutches
›
Transmission Sectional View
Transmission Sectional View

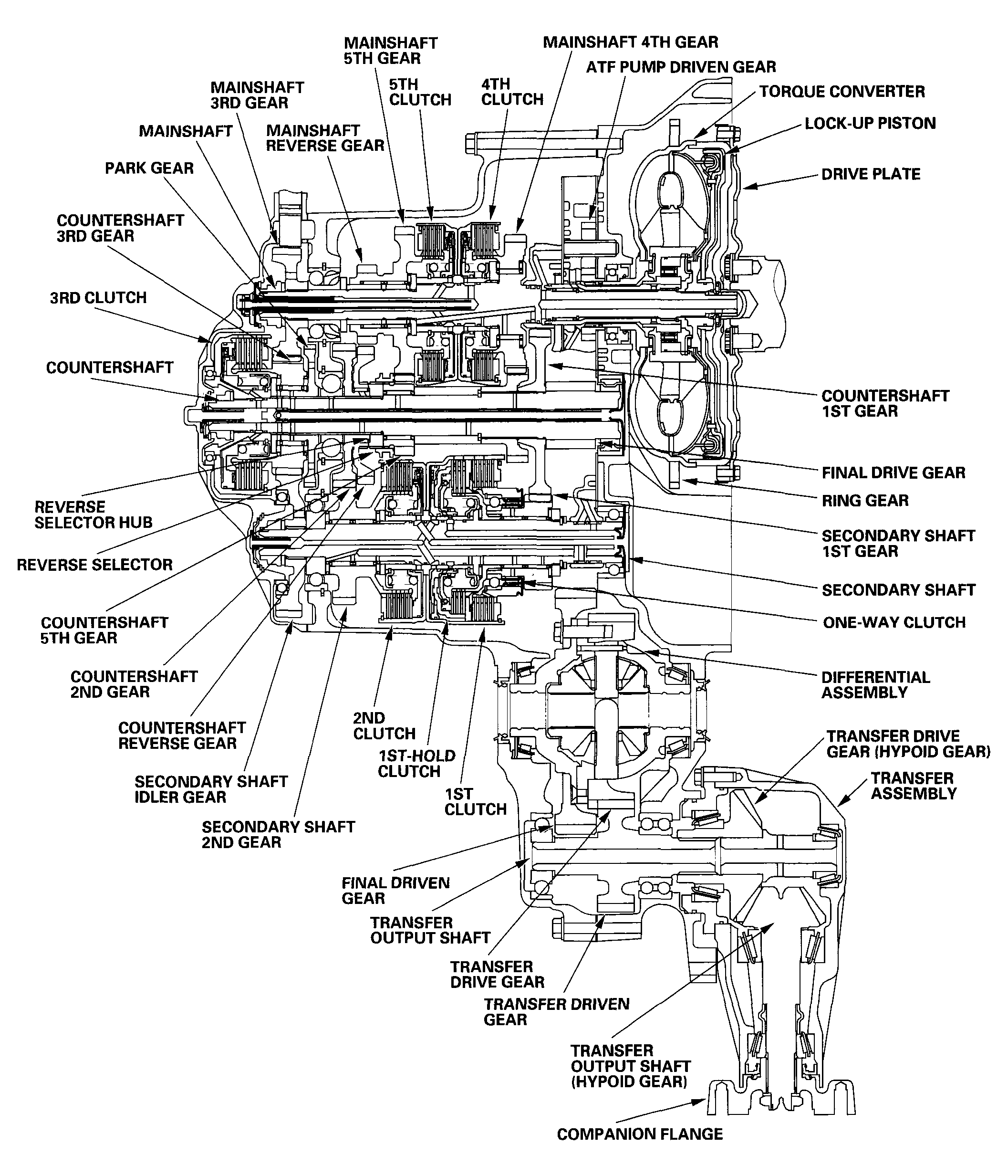

Fig 1: Identifying Transmission Sectional View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
